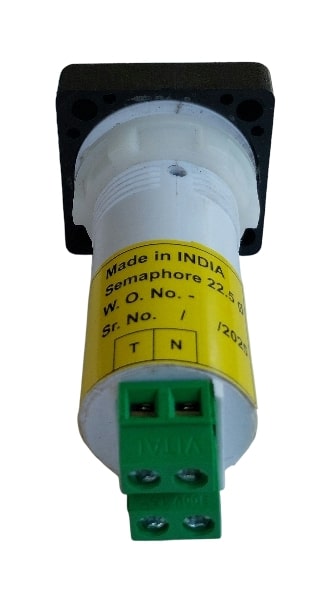

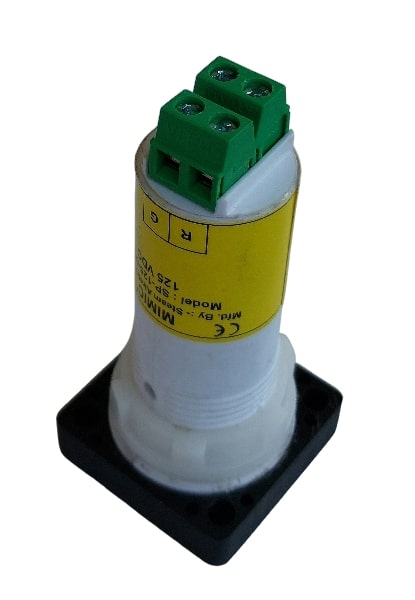

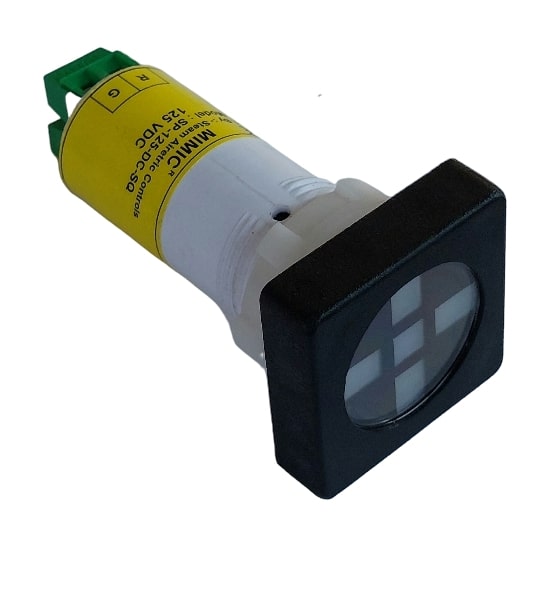

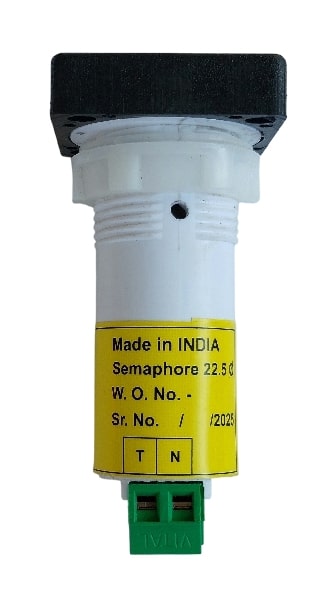

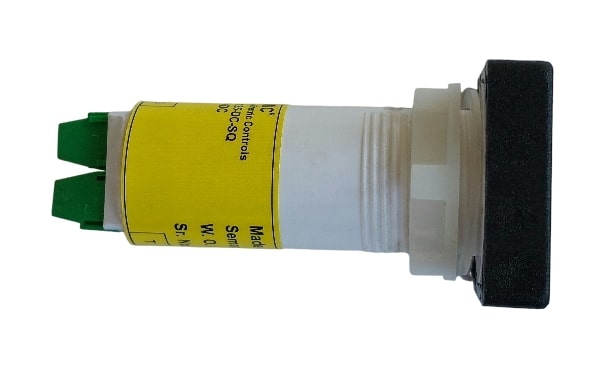

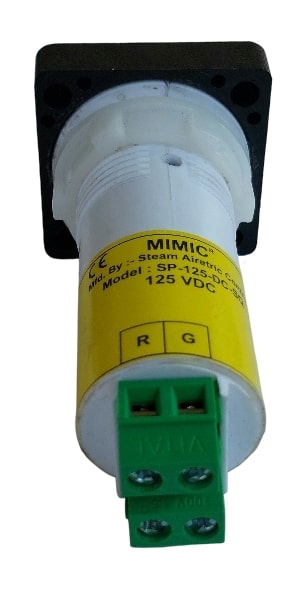

LED Semaphore Indicators-22.5 Cutout- Square with test function
Square Details :- Cutout :- 22.5mm
Bezel :- 30x30mm
Voltage :- 24V,30V, 48V, 110V, 125V, 220V, 250VDC
Models :-
• MIMIC-SP-22-24-DC-SQ-T
• MIMIC-SP-22-110-DC-SQ-T
• MIMIC-SP-22-125-DC-SQ-T
• MIMIC-SP-22-220-DC-SQ-T
• MIMIC-SP-22-250-DC-SQ-T
Applications :- Circuit Breaker Panel MIMIC Diagram
Specifications :-
Rated Insulation Voltage (Ui) : AC, DC 250V.
Rated Operational Voltage (Ui) : DC 24V, 30V, 48V, 110V, 220V.
Voltage Fluctuation Range : ±15%
Rated Operational Current (Ie) : 11 mAmax
Insulation Resistance : 1000MΩ over Impulse Withstand
Voltage : ± 4500V,
3 Times For EachPole (1.2/50µs) Shock Resistance : 490m/s²
Durability : over 10000 Cycles
Degree Of Protection : IP52
Operating Temperature : -20 to 60° C
Storage Temperature : -30 to 75° C
Relative Humidity : 45 to 85 %
Altitude : Max 2000m
Compatiable Copper Conductor : AWG 20 to 14
Mounting Plate Thickness : 1 to 6mm
Confirming to Standard : IEC 60947-5-1, IEC 60947-1
