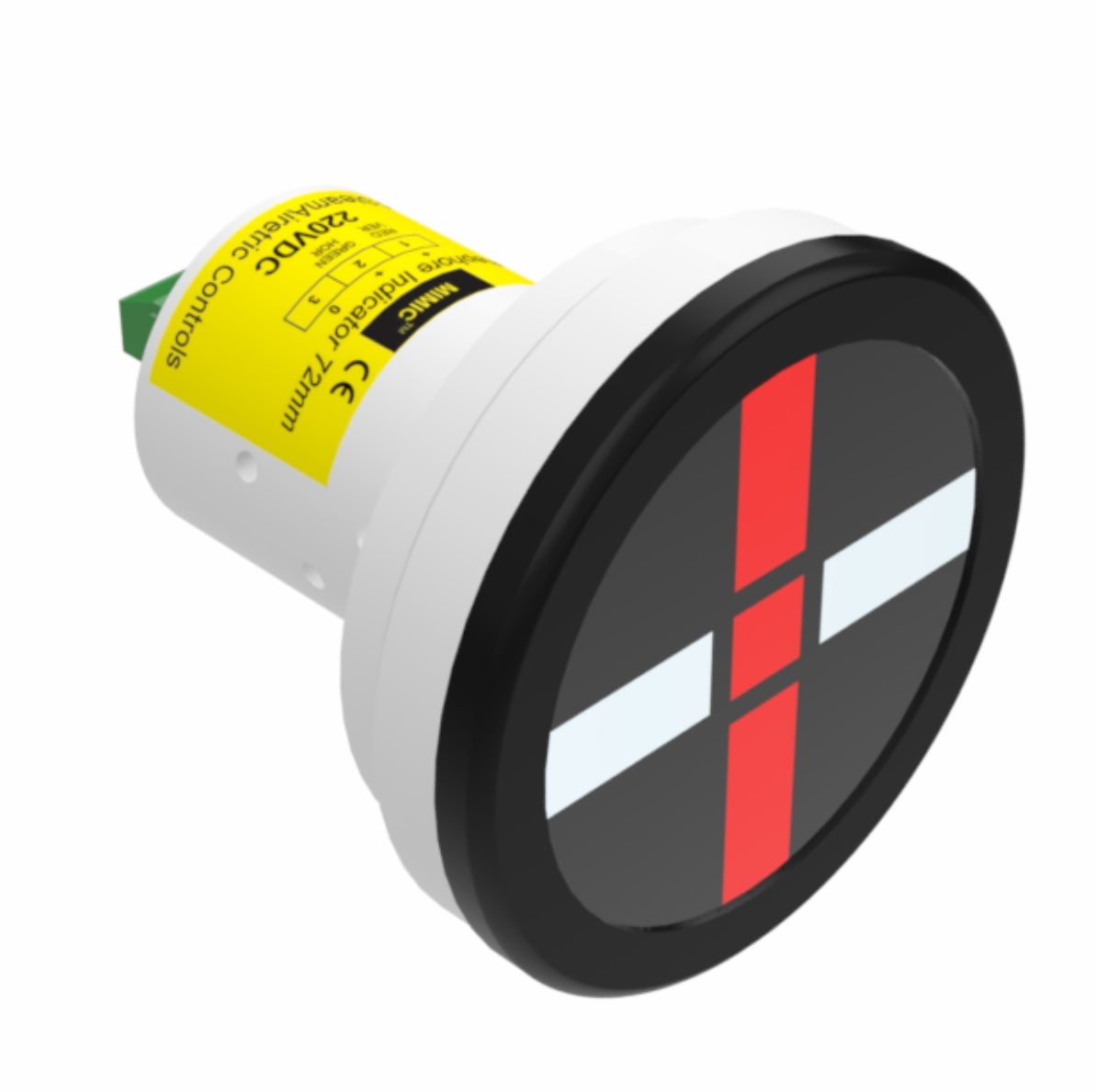

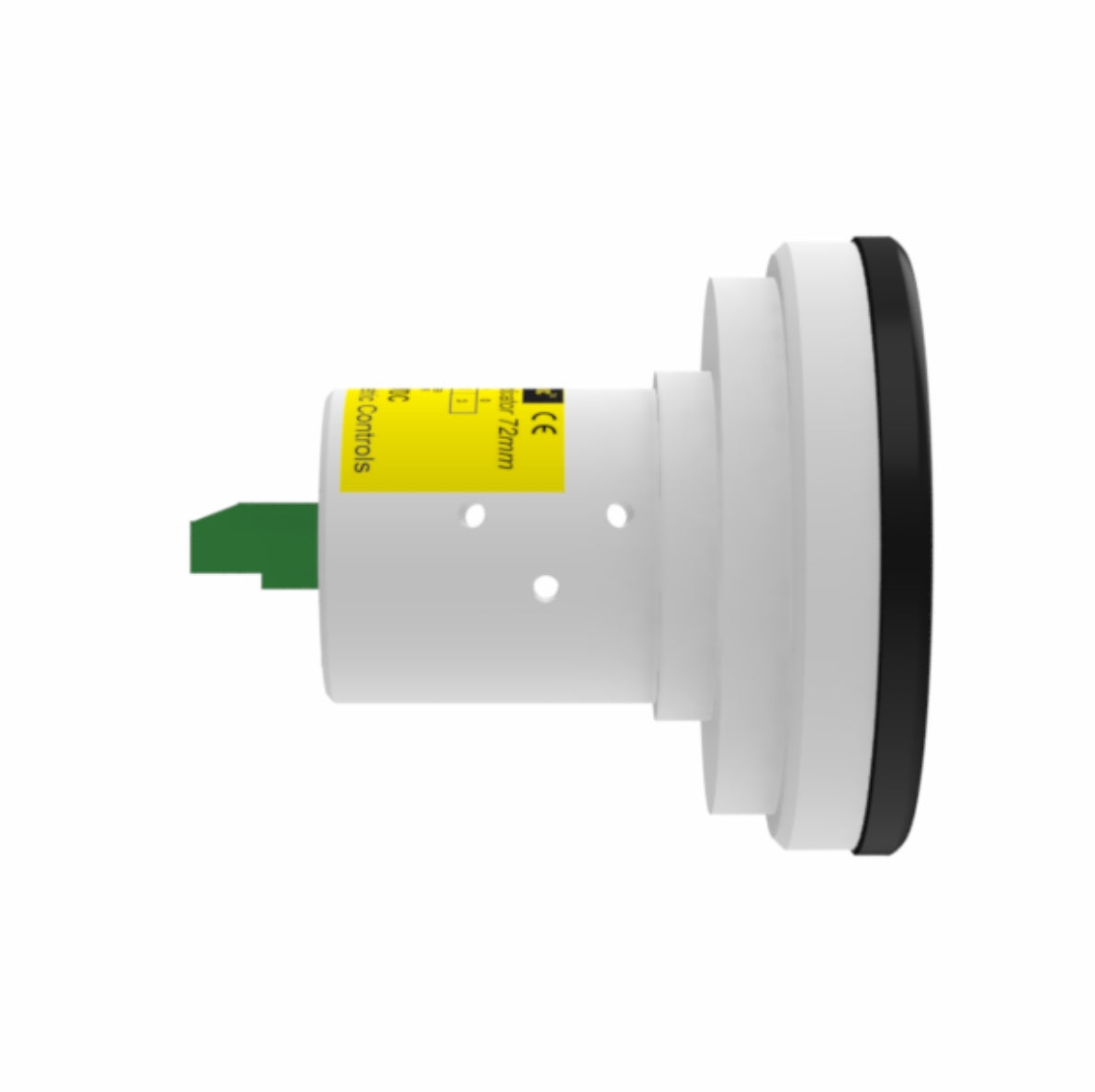

MIMIC LED Semaphore Indicator is used insituations which require visual simulationof the circuit or operating state of a device.Also used for indication of the fault positionor ON – OFF positions.Semaphore Indicator is particularly suitablefor monitoring power breakers & disconnectorsin complex transformers substations that arerepresented in form of mimic diagrams ofrelatively small dimensions.Applications : Automatic Status Indicationof Circuit Breakers, Isolators & Earth Switches.Also for MIMIC Diagrams of control panels.
Applications :- Circuit Breaker Panel MIMIC Diagram
Specifications :-
Rated Insulation Voltage (Ui) : AC, DC 250V.
Rated Operational Voltage (Ui) : DC 24V, 30V, 48V, 110V, 220V.
Voltage Fluctuation Range : ±15%
Rated Operational Current (Ie) : 11 mAmax
Insulation Resistance : 1000MΩ over Impulse Withstand
Voltage : ± 4500V,
3 Times For EachPole (1.2/50µs) Shock Resistance : 490m/s²
Durability : over 10000 Cycles
Degree Of Protection : IP52
Operating Temperature : -20 to 60° C
Storage Temperature : -30 to 75° C
Relative Humidity : 45 to 85 %
Altitude : Max 2000m
Compatiable Copper Conductor : AWG 20 to 14
Mounting Plate Thickness : 1 to 6mm
Confirming to Standard : IEC 60947-5-1, IEC 60947-1

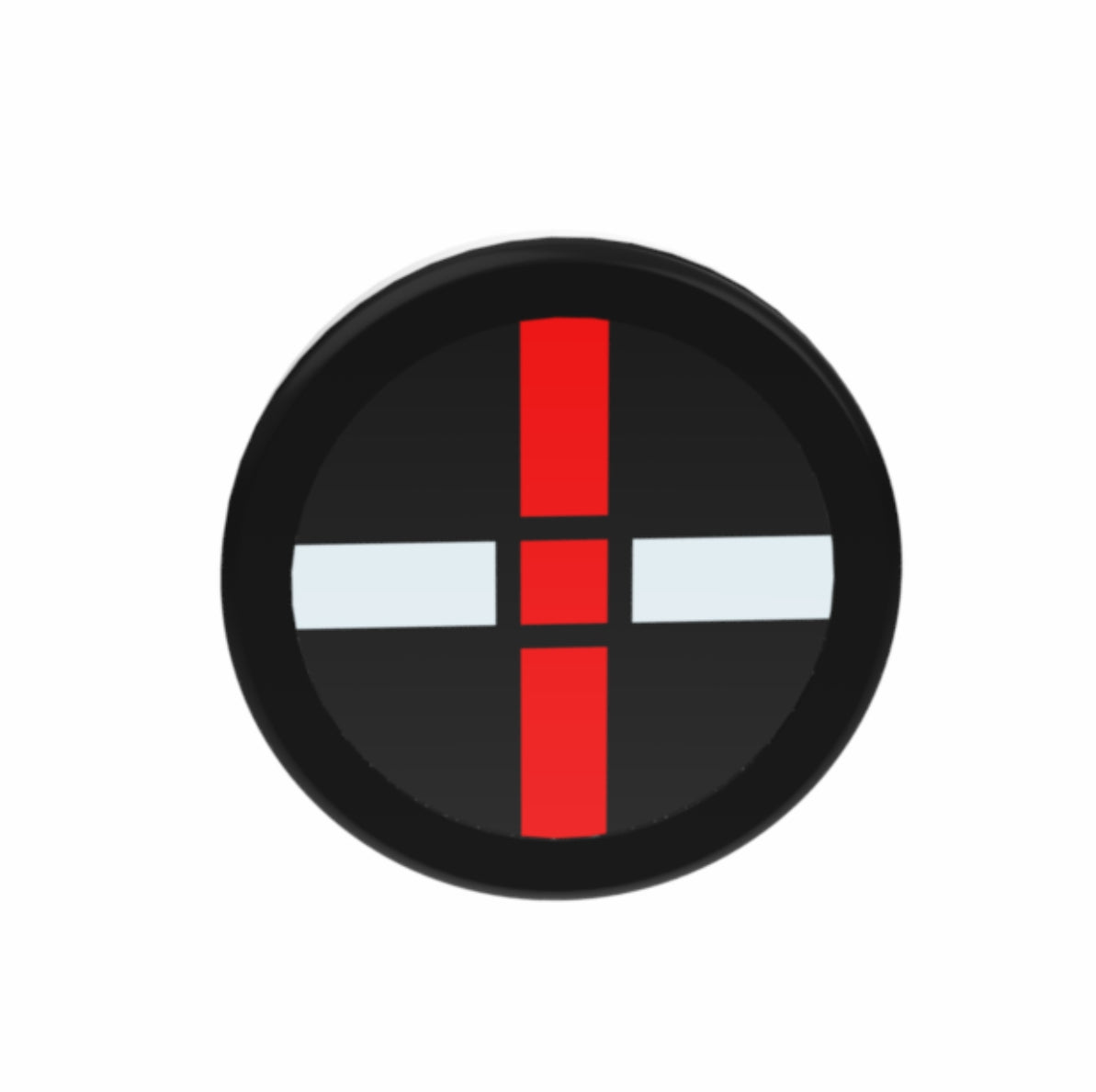

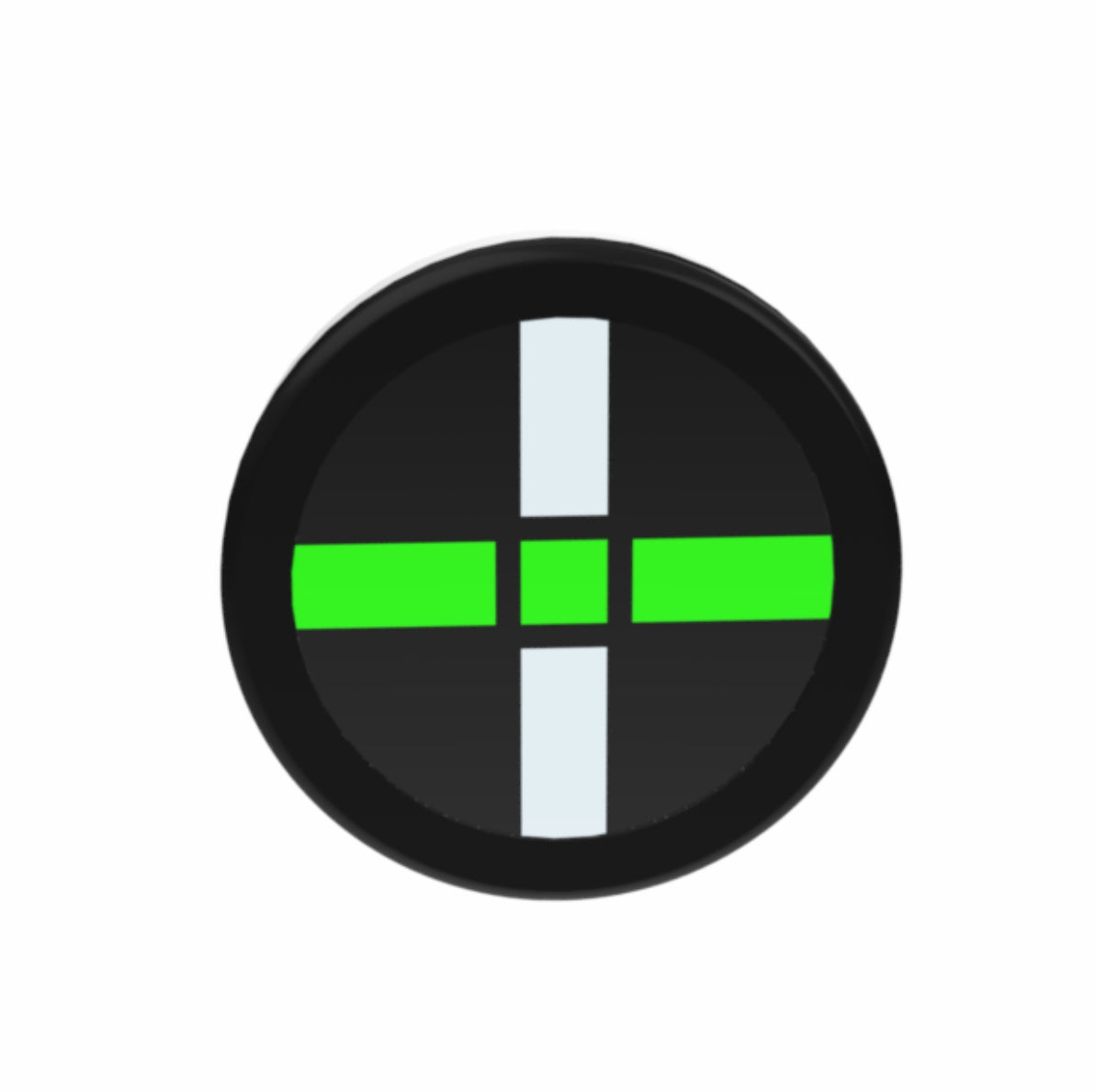

Indication: vertical red , horizontal green

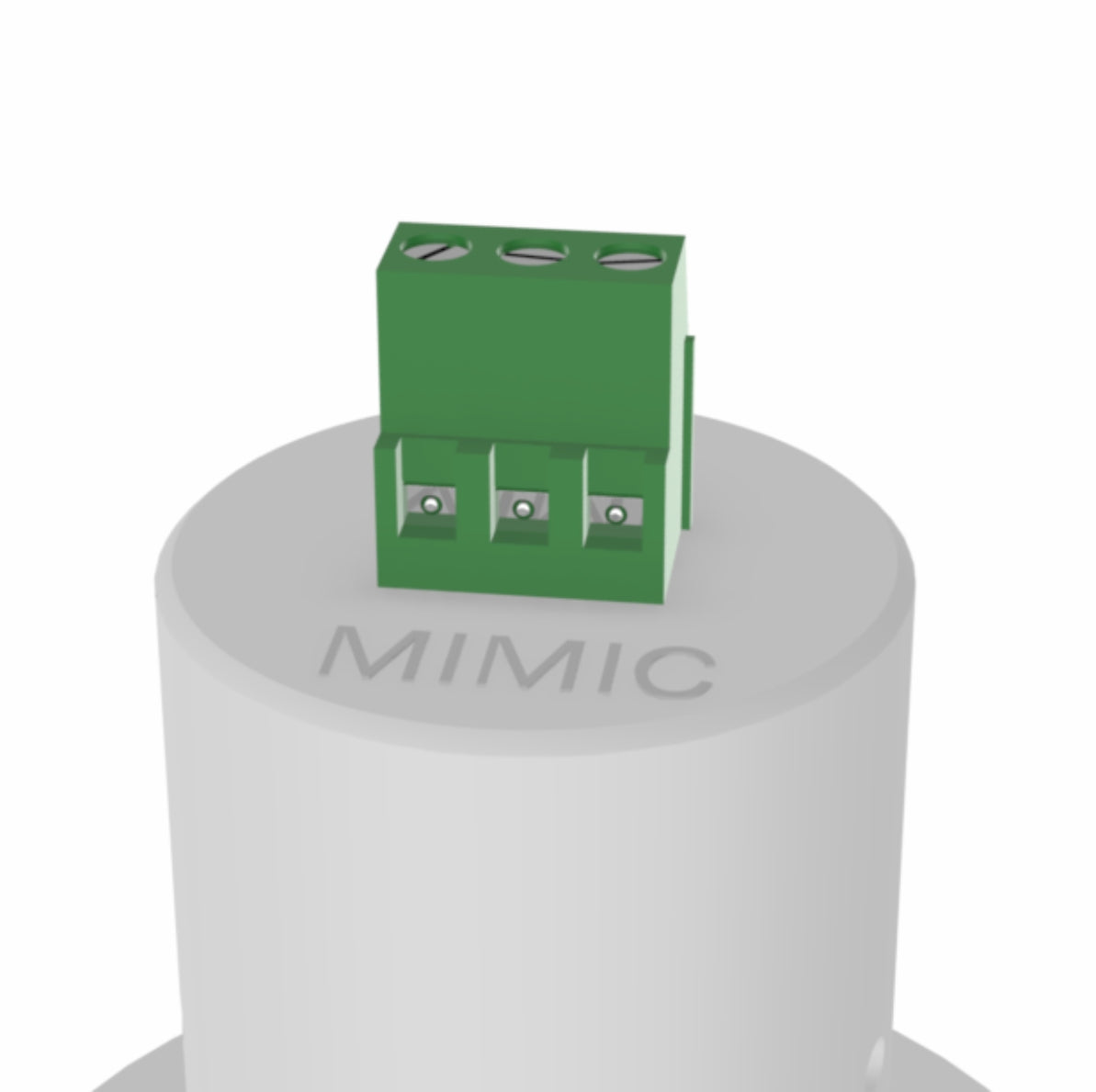

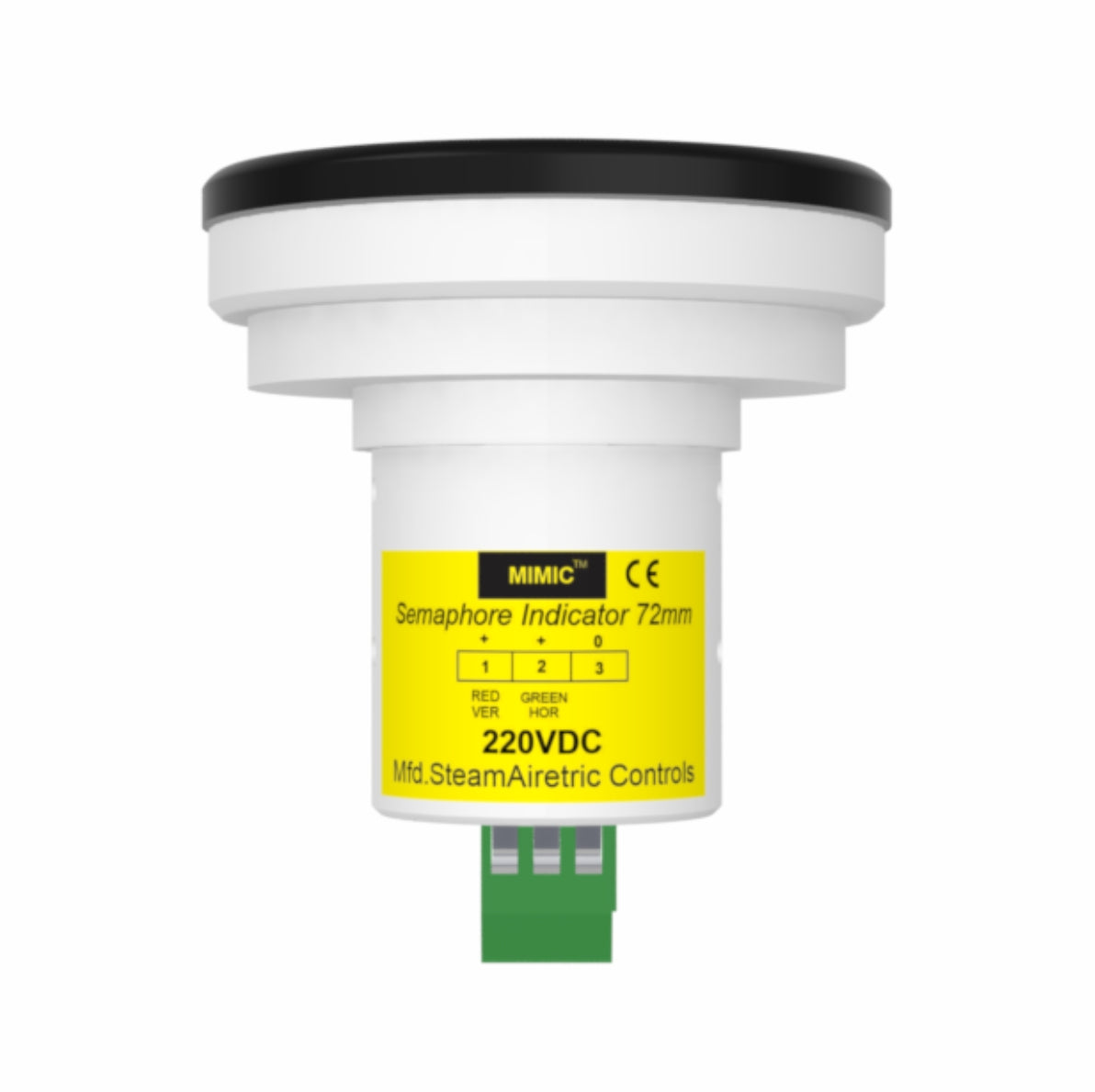

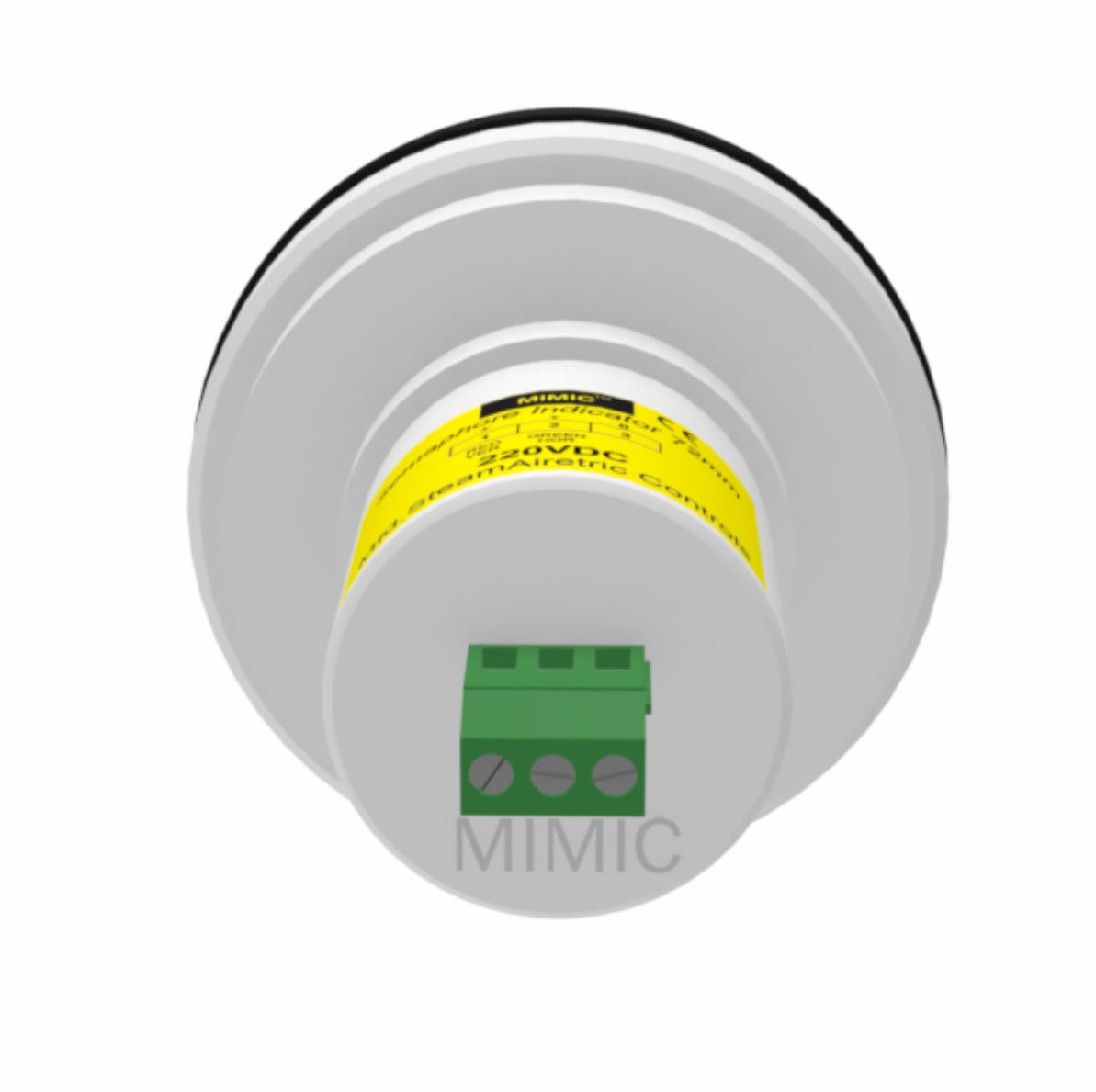

Connection: 1-red,2-green,3-common
