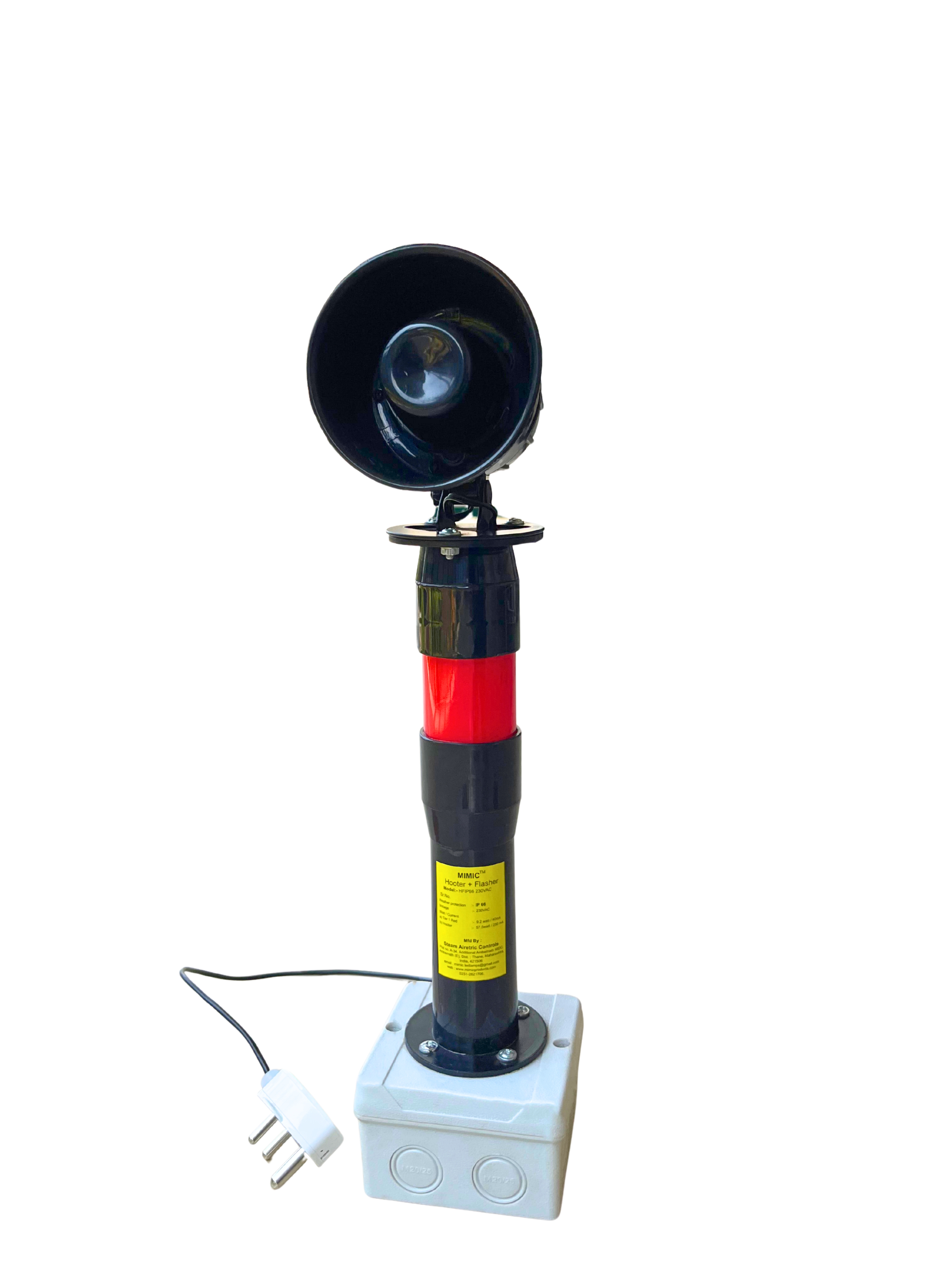

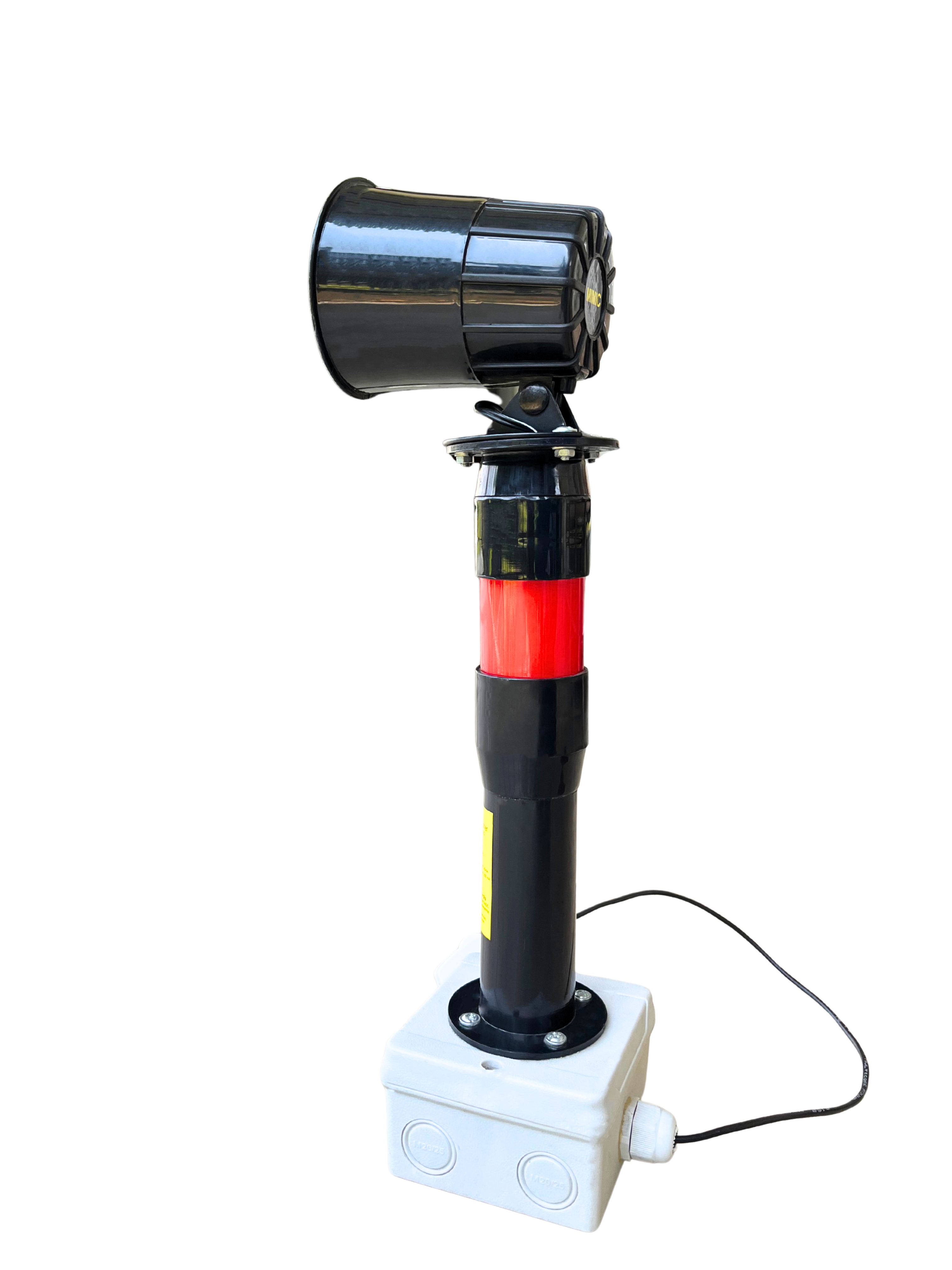

Electronic Hooter Flasher with IP66 weatherproof protection.
Designed for outdoor and harsh industrial environments.
Suitable for naval and outdoor signaling applications.
Rugged construction with IP66 junction box.
Equipped with high-intensity LED flasher and electronic hooter.

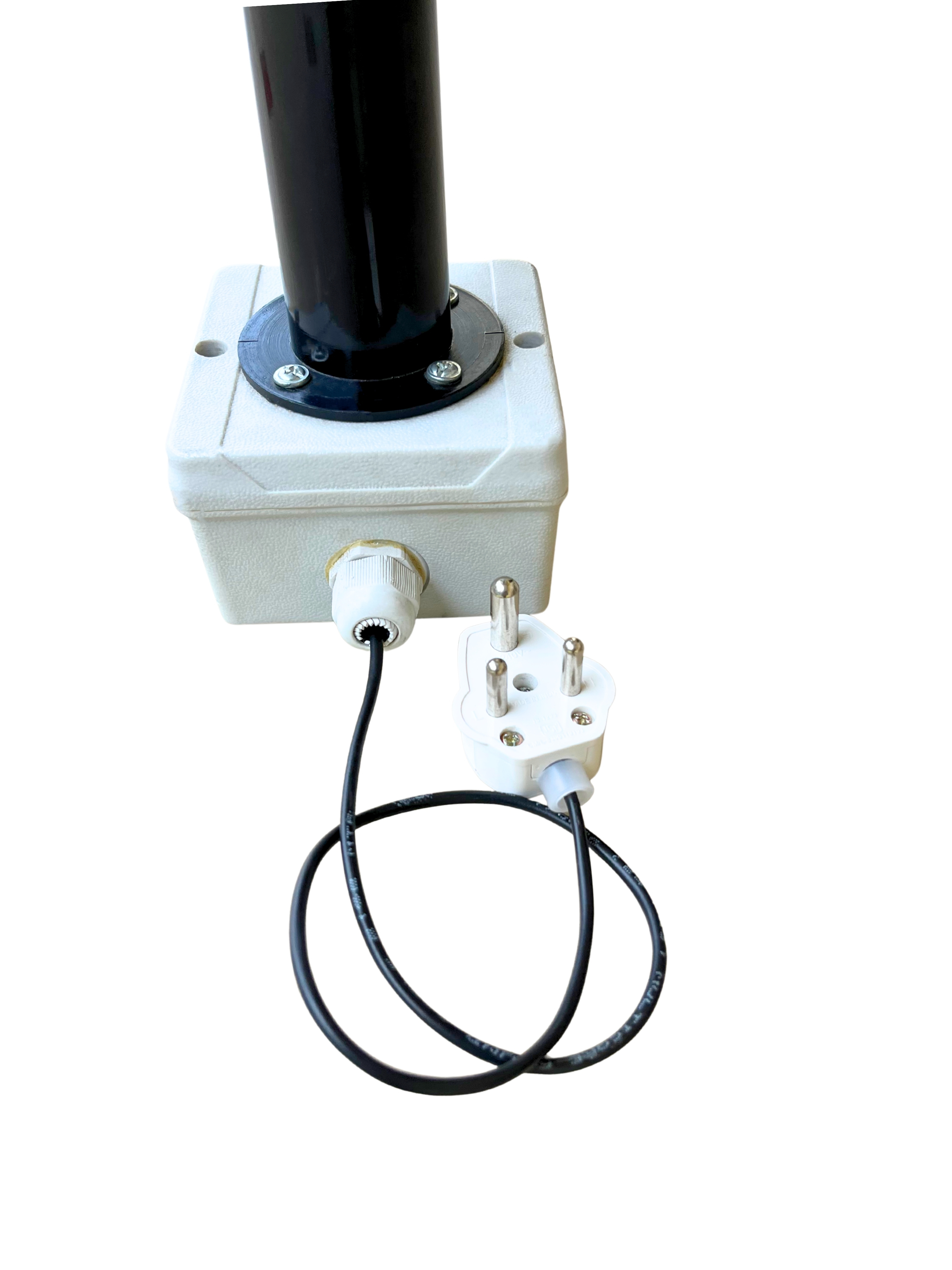

Easy cable entry provision for quick installation.
Brand: MIMIC
Key Features
IP66 weatherproof protection.
Ideal for naval applications.
Suitable for outdoor duty.

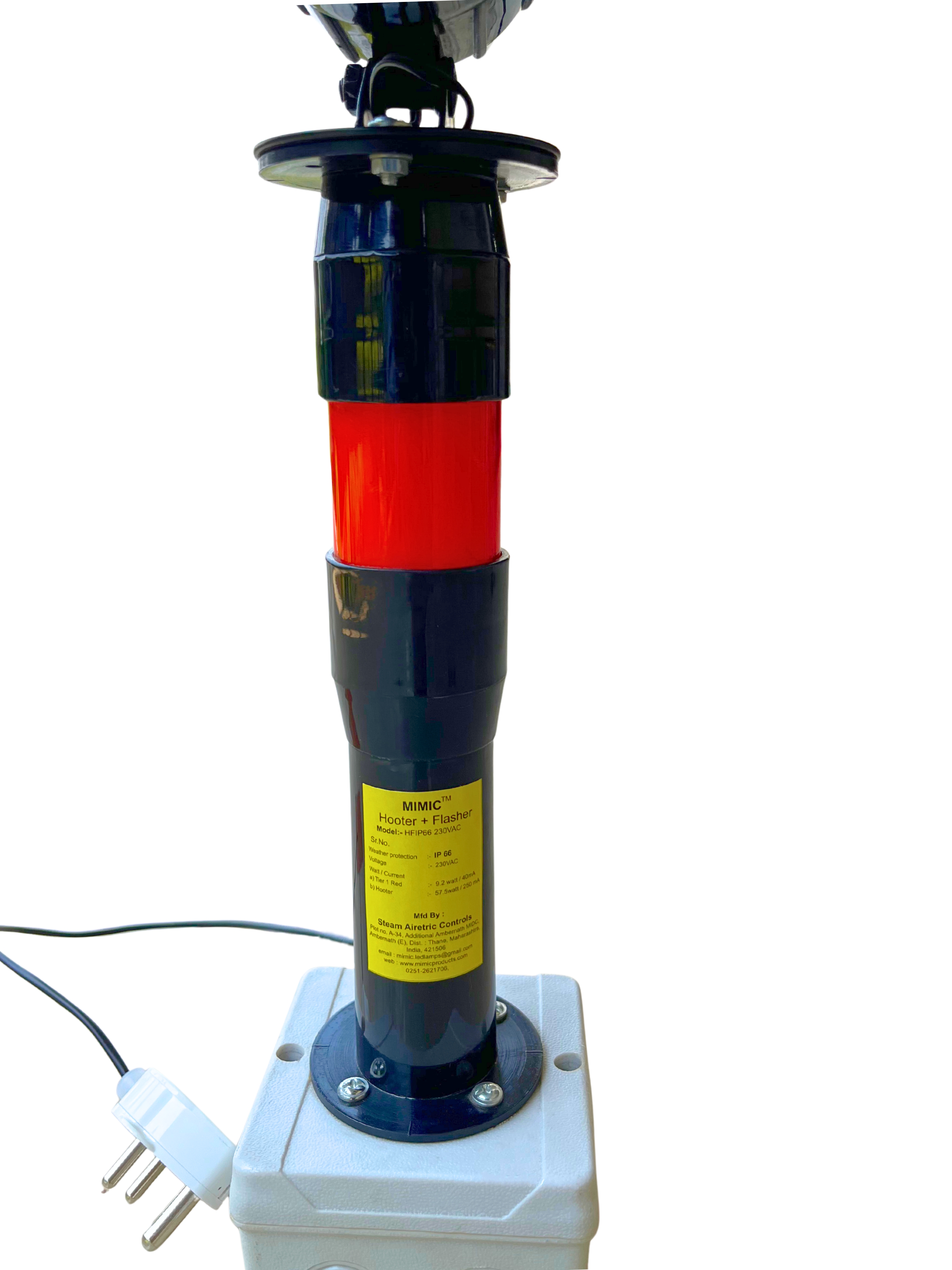

Bright red LED flasher.

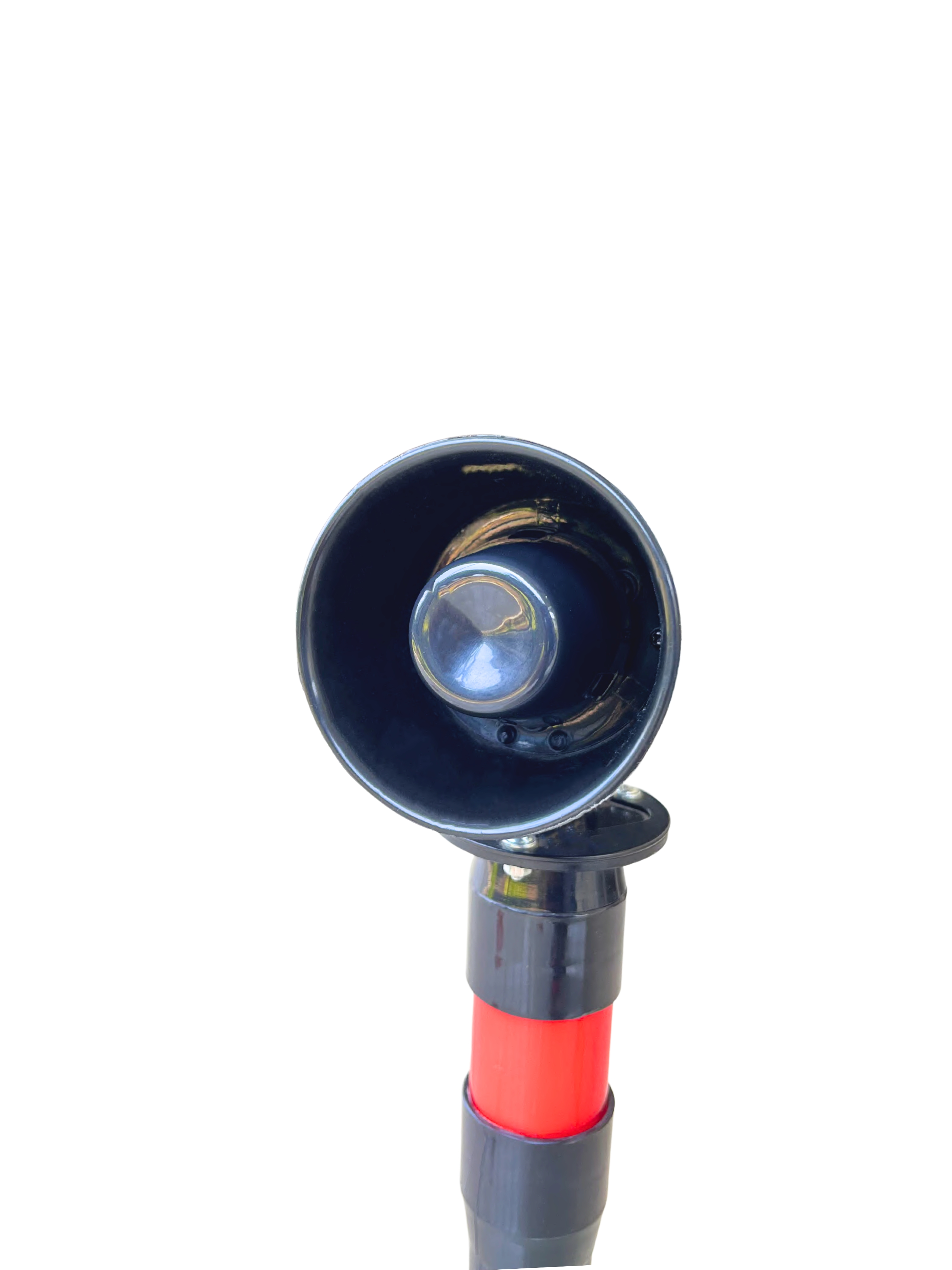

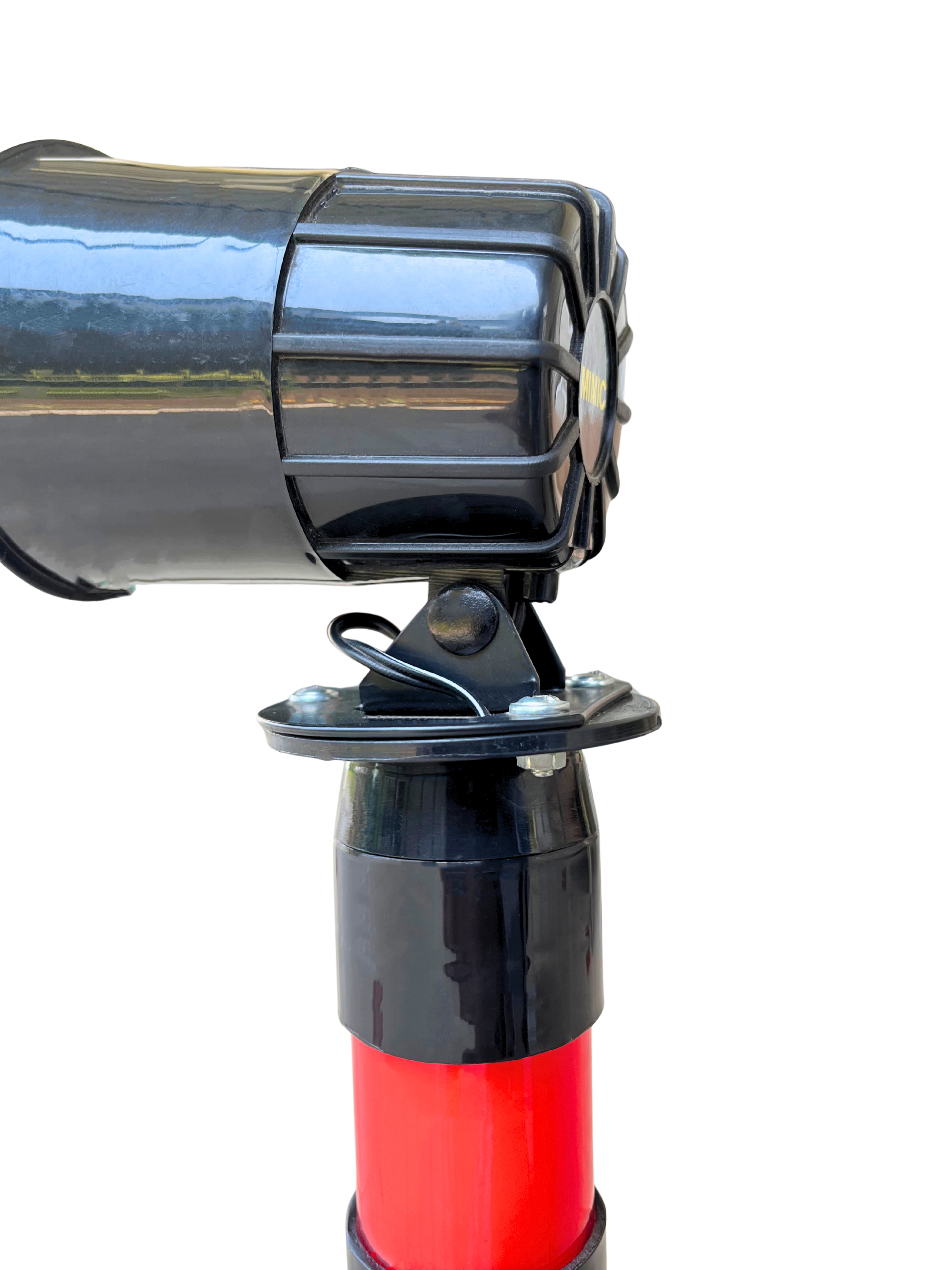

Loud electronic hooter.
Sound output between 90–110 dB.

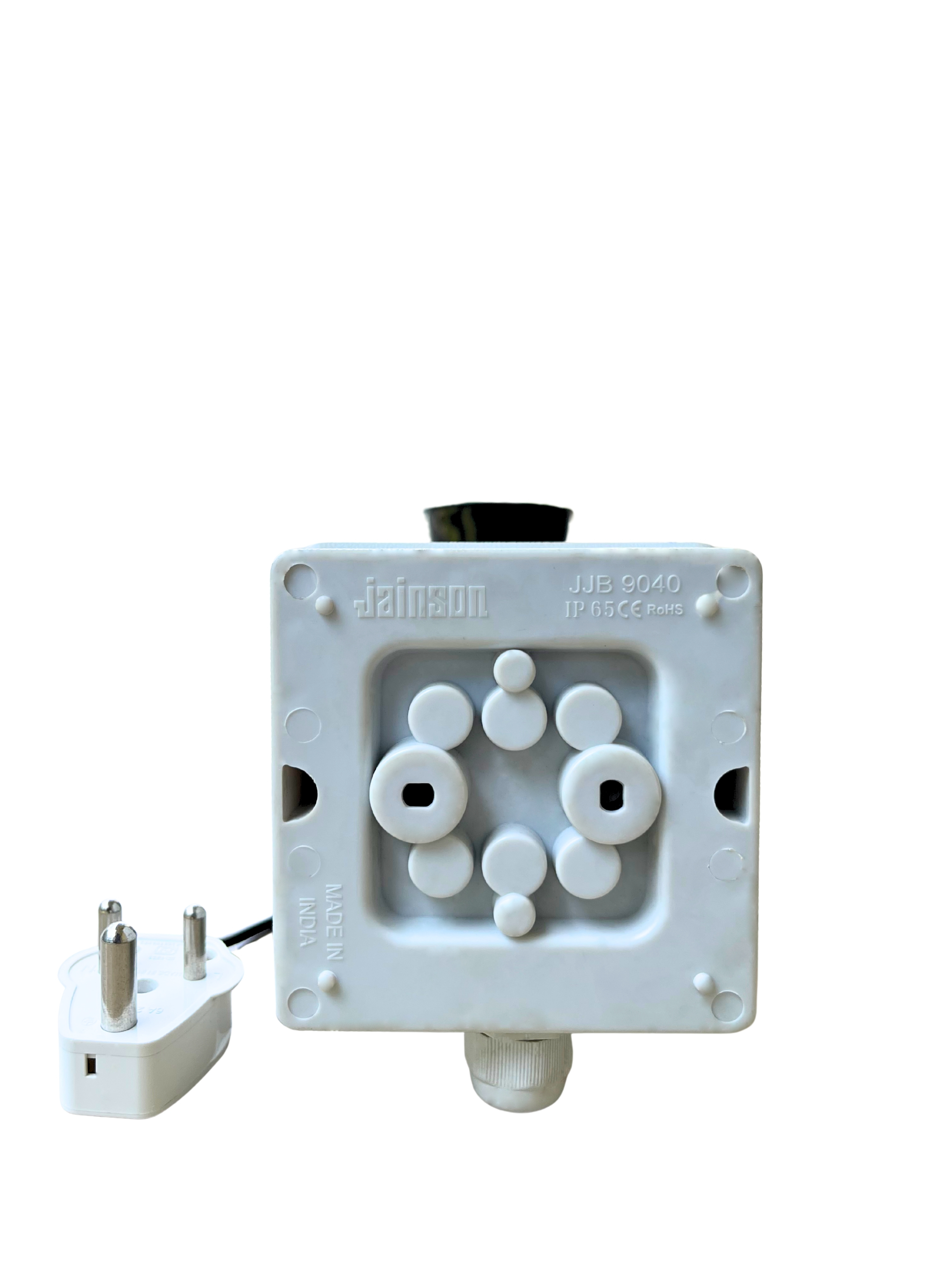

Supplied with IP66 junction box.
Robust and durable construction.
Easy wall or base mounting.
Technical Specifications
Product Name: Electronic Hooter Flasher IP66
Brand: MIMIC
Protection Rating: IP66
Available Voltages:
12V DC
24V DC
110V AC
230V AC
Voltage Tolerance: ±10%
Hooter Power Consumption: 9.6 W
Flasher Power Consumption: 0.48 W
Hooter Current: 0.4 A
Flasher Current: 20 mA
Sound Level: 90–100 dB (at 1 meter distance)
Illumination Type: LED
Flashing Pattern: 1 second ON, 0.5 second OFF
Connection:
14/38 × 3 Core Cable
OR 5 sq.mm × 3 Wire
Available LED Colours:
Red
Green
Amber
Blue
White
Mounting Options:
Wall Mounting
Base Mounting
Body Material:
ABS Engineering Grade
Polycarbonate Glowing Section
Single Box Size:
450 × 150 × 150 mm
Weight:
Approx. 1 kg (Packed)
Minimum Order Quantity:
1 Piece
Applications
Naval installations
Outdoor warning systems
Industrial plants
Factory safety systems
Control panels
Hazardous area warning
Process industries
Warehouses
Construction sites
Utility plants
Advantages
Excellent weather resistance.
Reliable audible and visual warning.
Long-life LED illumination.
Low power consumption.
Easy installation.
Suitable for continuous outdoor use.
High visibility during day and night.
Maintenance-friendly design.
FAQs
1. What is an Electronic Hooter Flasher IP66 used for?
An Electronic Hooter Flasher IP66 is used to provide both audible and visual warning signals in industrial plants, factories, outdoor installations, marine environments, and hazardous work areas. Its IP66 protection makes it suitable for harsh weather conditions.
2. Is the Electronic Hooter Flasher suitable for outdoor installation?
Yes. The Electronic Hooter Flasher features an IP66 weatherproof enclosure, making it resistant to dust, rain, and water jets. It is designed specifically for outdoor industrial and naval applications.
3. What voltage options are available for the MIMIC Electronic Hooter Flasher?
The MIMIC Electronic Hooter Flasher is available in multiple voltage options including 12V DC, 24V DC, 110V AC, and 230V AC. Additional voltage configurations may also be available depending on the application.
4. How loud is the Electronic Hooter Flasher?
The hooter produces a sound intensity of approximately 90–100 dB at a distance of one meter, making it suitable for industrial safety alarms and emergency warning systems.
5.Where can I buy MIMIC Electronic Hooter Flashers?
You can purchase MIMIC Electronic Hooter Flashers directly from MIMIC or through its authorized dealers and distributors for industrial signaling and safety products.
