Product Description

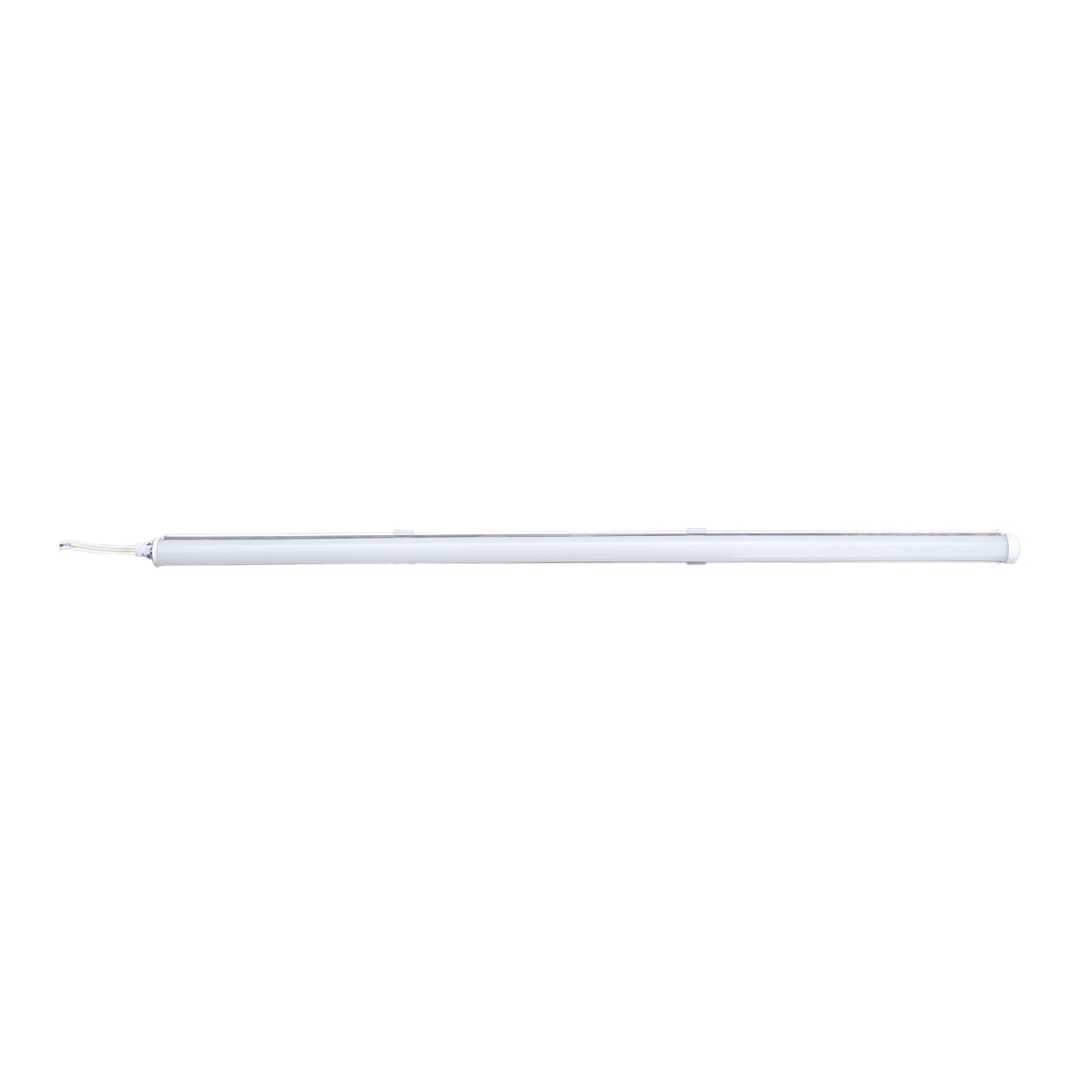

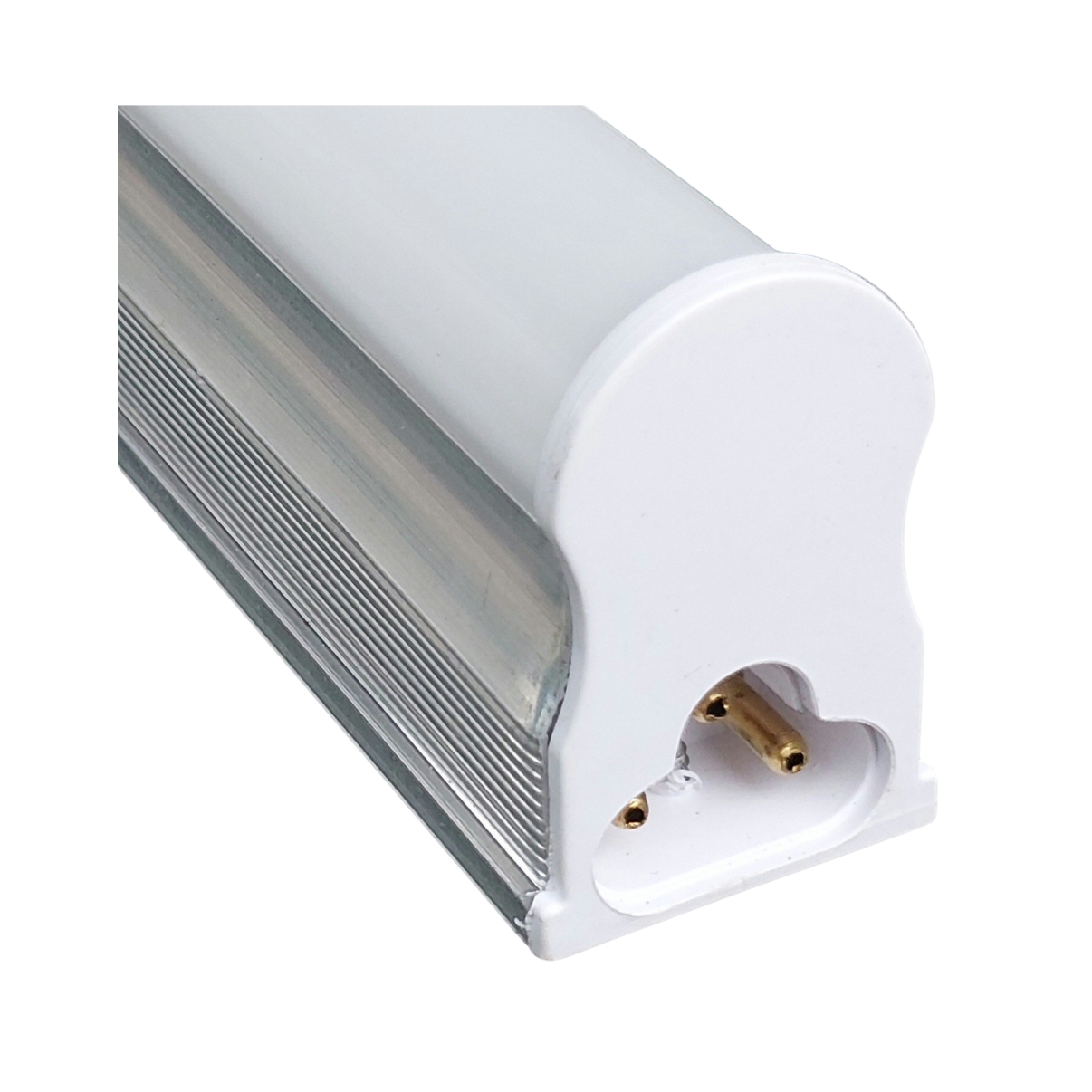

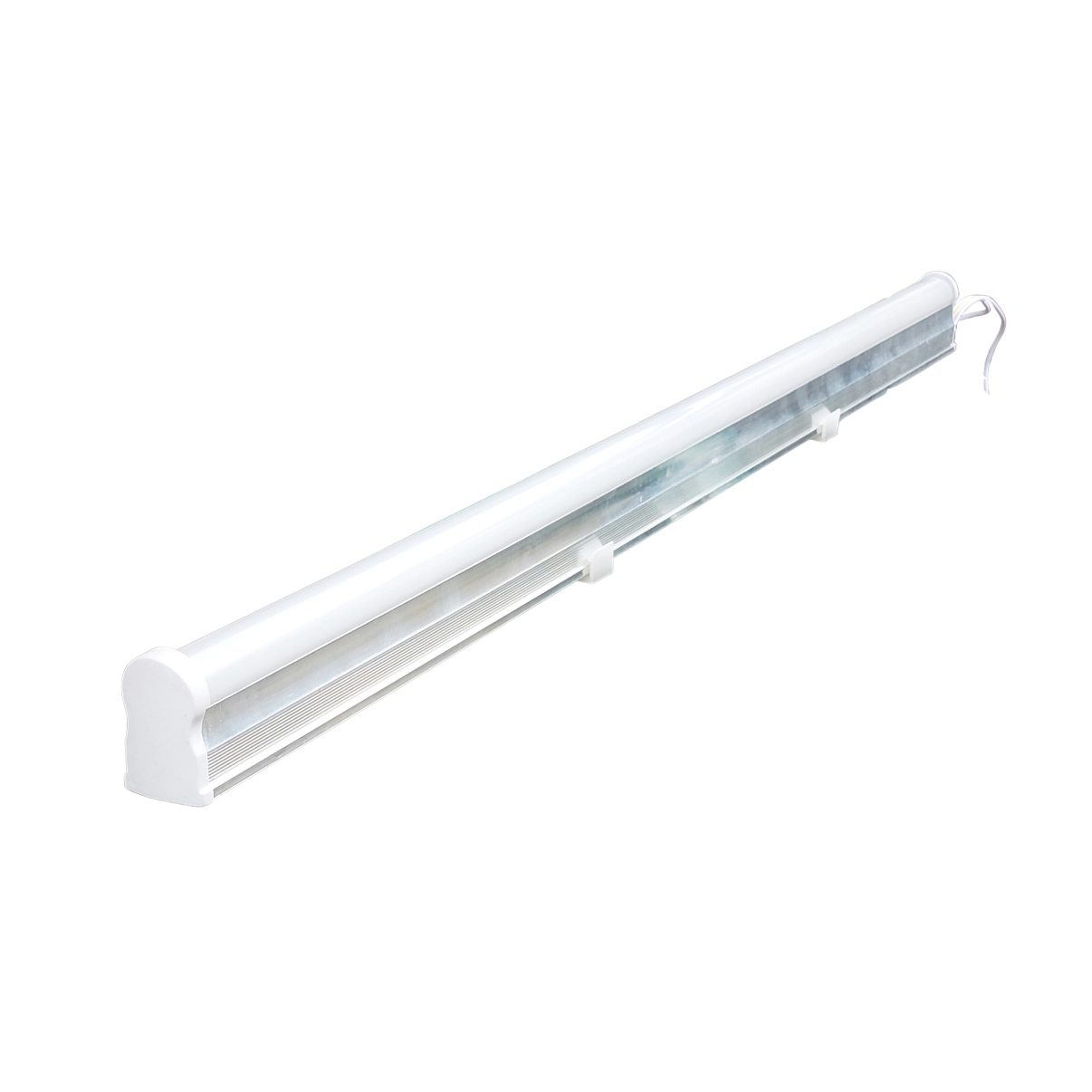

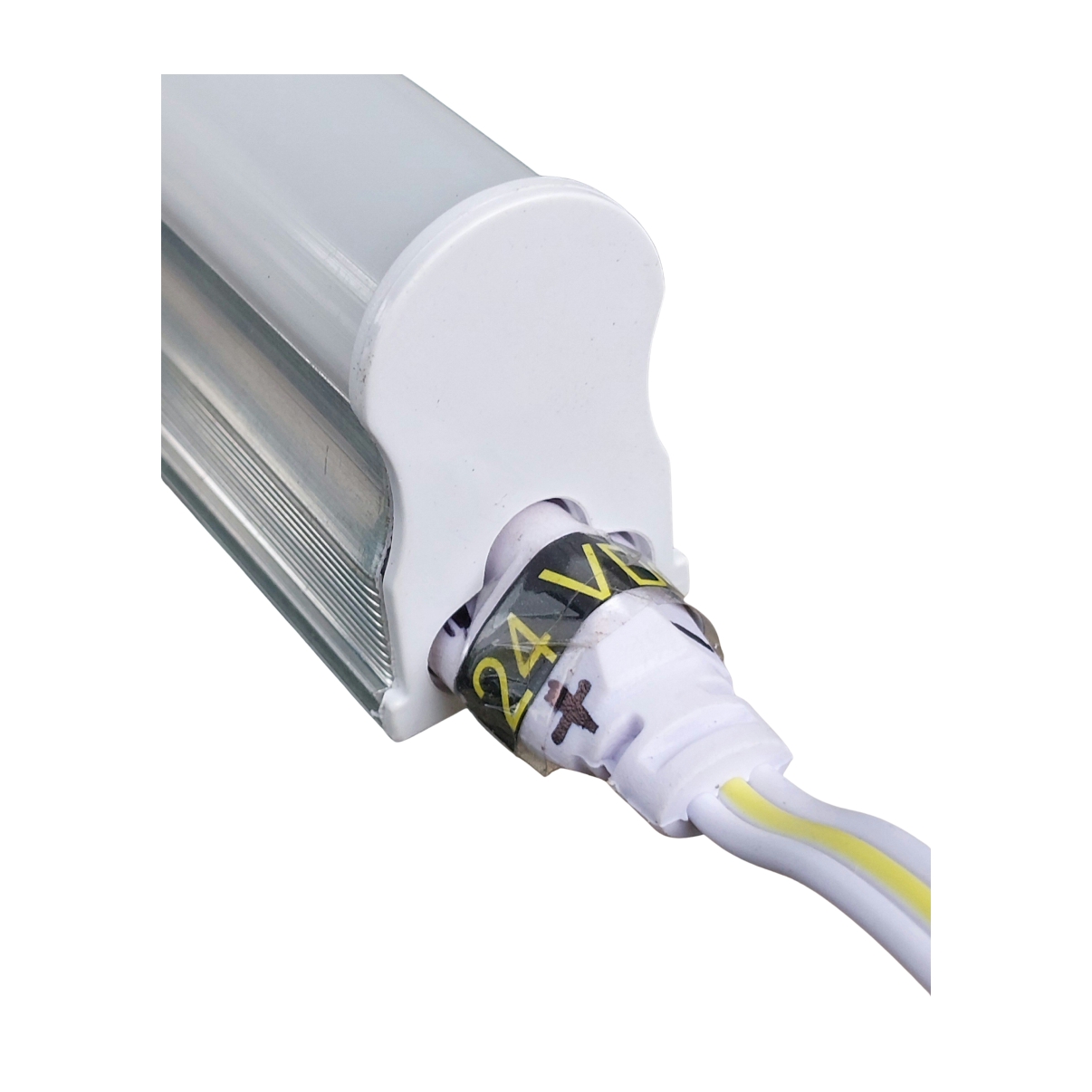

The MIMIC LED DC Tube Light (DC-TL) is a high-performance, energy-efficient lighting solution designed for vehicles, solar systems, control panels, industrial equipment, and emergency lighting applications. Engineered with a robust aluminum extruded body and durable ABS mounting brackets, it offers excellent resistance to vibration and harsh environmental conditions. The unbreakable polycarbonate diffuser provides uniform illumination while ensuring long-lasting durability.
Key Features
- High-efficiency LED technology for low power consumption
- Long operational life of up to 50,000 hours
- Available in 24VDC, 48VDC, and 110VDC versions
- IP65-rated weatherproof construction
- Lightweight and corrosion-resistant aluminum housing
- Unbreakable diffused polycarbonate cover
- Built-in reverse polarity protection
- Optional ON/OFF switch
- Designed for heavy vibration environments
- Suitable for indoor and outdoor applications
- Easy installation with sturdy ABS mounting brackets
- Reliable illumination for critical DC-powered applications
Technical Specifications
Electrical Specifications
- Operating Voltage: 24VDC / 48VDC / 110VDC
- Voltage Rating: 20VDC to 32VDC
- Voltage Fluctuation: ±15%
- Rated Operational Current: 280 mA
- Rated Insulation Voltage (AC, DC): 250V
- Insulation Resistance: 1000 MΩ
- Impulse Withstand Voltage: +4500V (3 times for each pole)
Lighting Specifications
- Light Source: LED
- Luminous Output: 1000 Lumens
- LED Life: 50,000 Hours
Environmental Specifications
- Protection Rating: IP65
- Operating Temperature: -40°C to +80°C
- Storage Temperature: -40°C to +80°C
- Shock Resistance: 490 m/sq.sec
Mechanical Specifications
- Main Body Material: Aluminum
- Diffuser Material: Diffused Polycarbonate
- Mounting Material: ABS
- Weight: 450 g
- Connection : 1.5 mm.sq × 2 nos
- Connecting Terminal: Provided inside lamp
- Control: Optional ON/OFF Switch
Available Models
DC-TL 1 Feet
- Voltage Options: 24VDC / 48VDC / 110VDC
DC-TL 2 Feet
- Voltage Options: 24VDC / 48VDC / 110VDC
Applications
- Solar Lighting Systems
- Industrial Control Panels
- Emergency Lighting Systems
- Marine Applications
- Battery-Powered Equipment
- Portable Utility Lighting
- Off-Grid Installations
