BZ6-BZ11 Continuous Buzzer: Group

BZ6-BZ11 Continuous Buzzer: Group

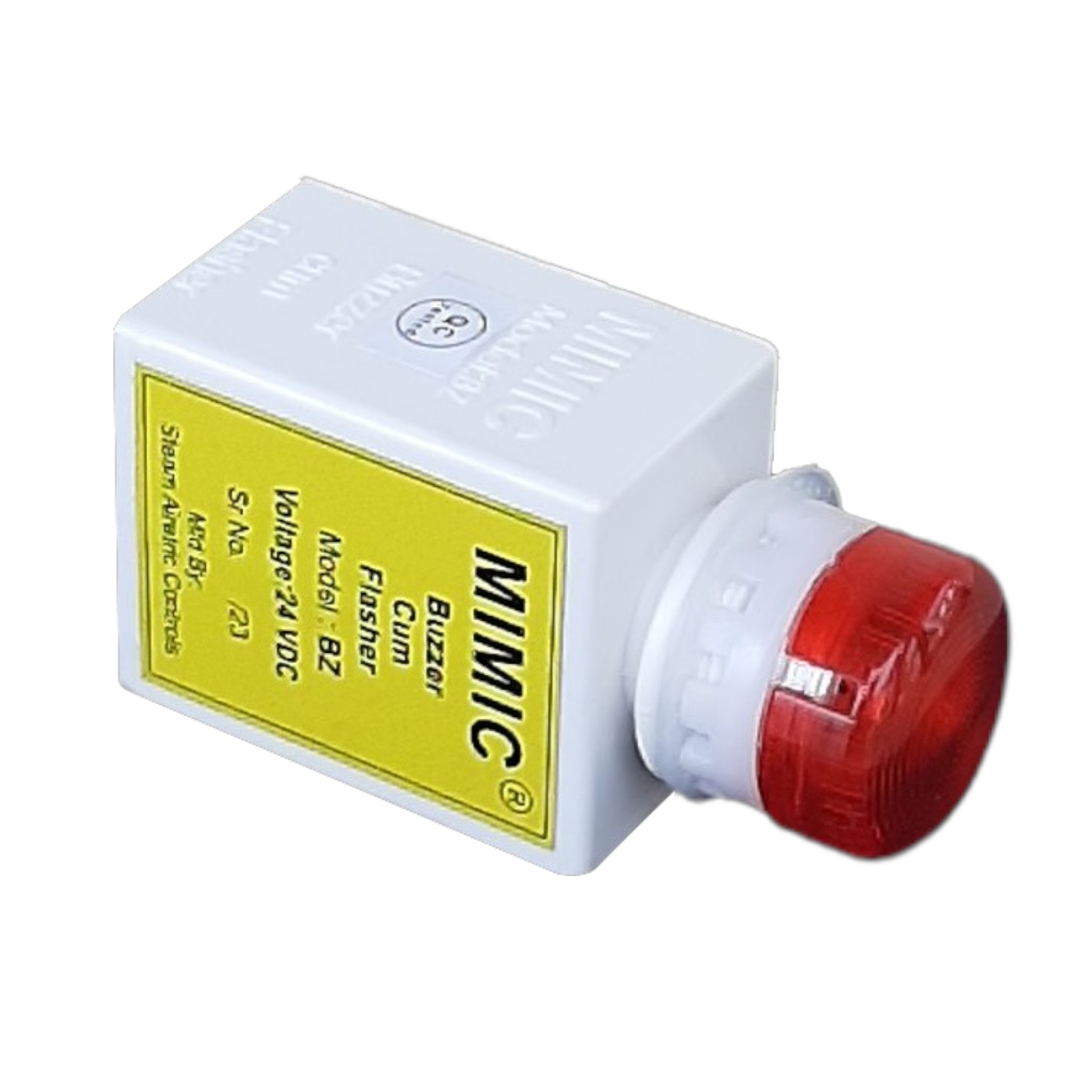

The MIMIC BZ6-BZ11 Continuous Buzzer is a range of reliable industrial audible signalling devices designed to provide a continuous, high-pitch sound for machine status, warning, process indication, and alarm applications. With a powerful 90–105 dB sound output, the series provides clear audible indication in control panels and industrial environments where reliable signalling is essential.

Designed for easy integration into electrical and automation systems, the BZ6-BZ11 range offers multiple voltage and colour options, making it suitable for different panel and equipment requirements. The applicable models feature a 22.5 mm panel cut-out, compact construction, a fire-retardant PBT body, and a durable polycarbonate cap.

Key Features & Specifications

1. Sound Output: 90–105 dB high-pitch continuous sound
2. Voltage Options: 12VDC, 24VAC, 24VDC, 48VDC, 110VAC, 110VDC, 220VDC & 230VAC*
3. Colour Options: Red, Green, Amber, Blue & White*
4. Panel Cut-out: 22.5 mm*
5. Body Material: Fire-retardant PBT
6. Cap Material: Polycarbonate
7. Application: Industrial audible signalling
8. Country of Origin: India

The BZ6-BZ11 Continuous Buzzer Group is suitable for electrical control panels, PLC and automation systems, machine control panels, switchgear, manufacturing equipment, OEM machinery, power distribution systems, and industrial safety applications. Its continuous audible output can be used to indicate an ongoing machine condition, process status, warning, or other operational condition requiring the operator’s attention.

With its combination of high sound output, durable materials, compact panel installation, and flexible electrical configurations, the MIMIC BZ6-BZ11 range provides a practical and dependable solution for industrial audible signalling requirements.
