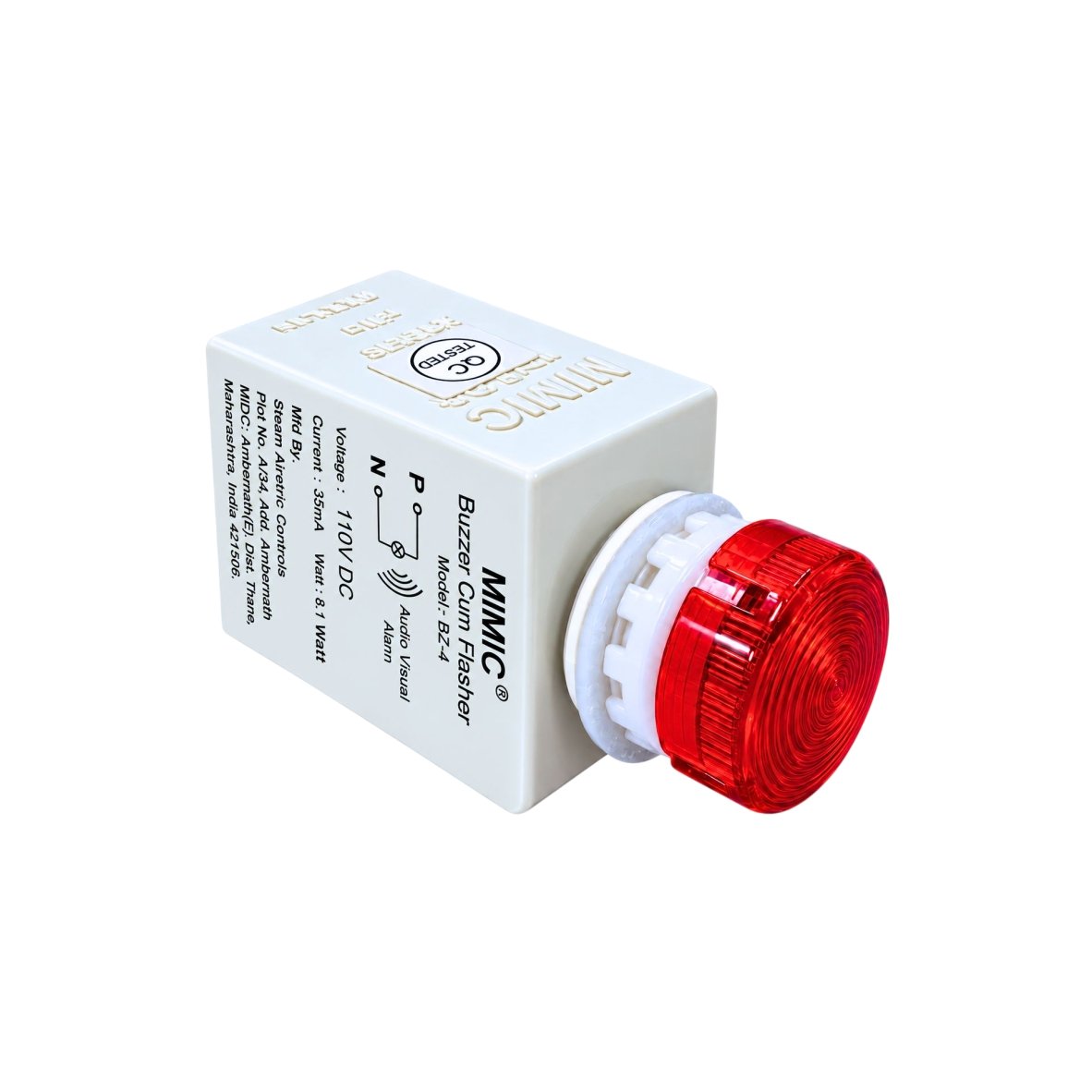

BZ-4 Buzzer Cum Flasher 110V DC

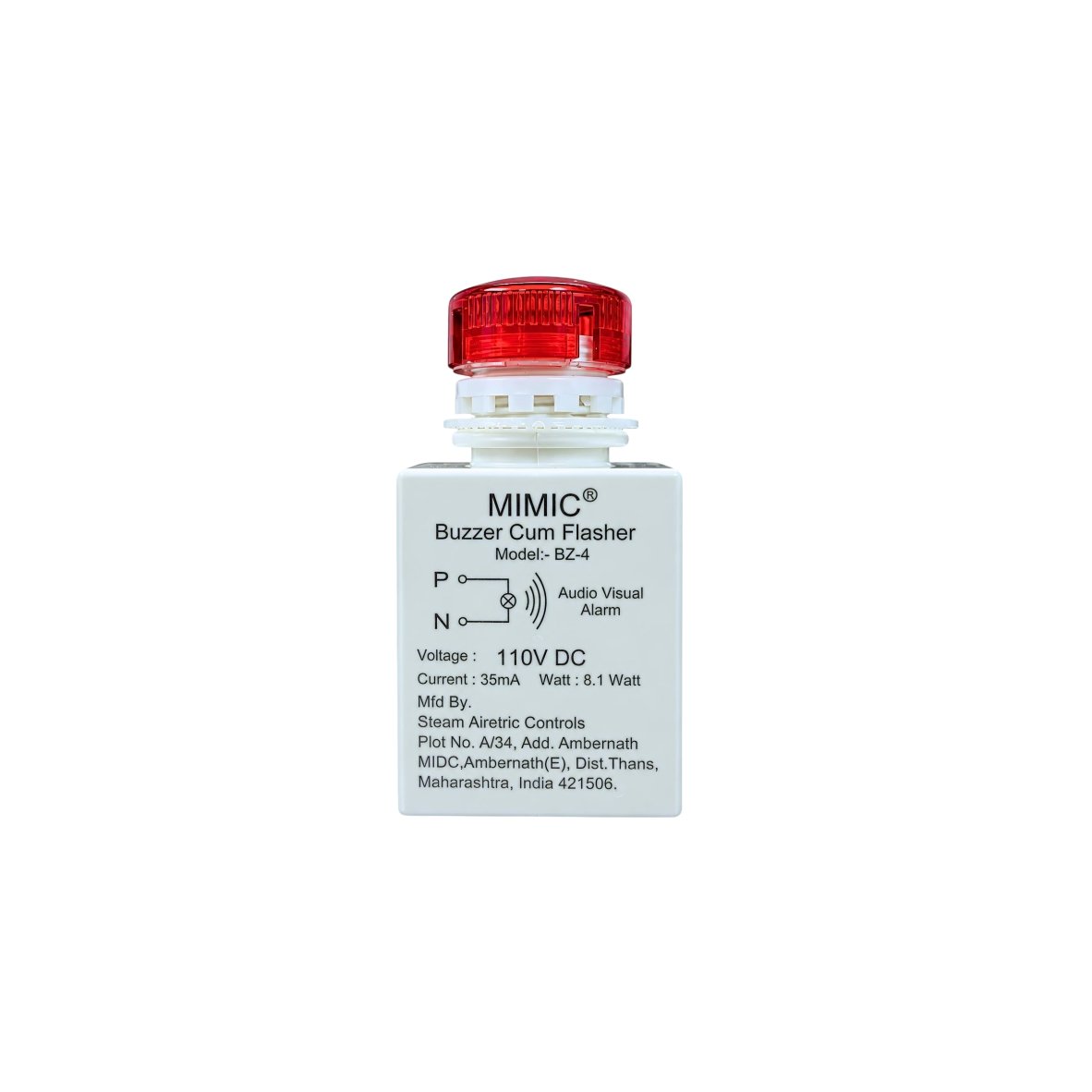

BZ-4 Buzzer Cum Flasher-110V DC - Image 2

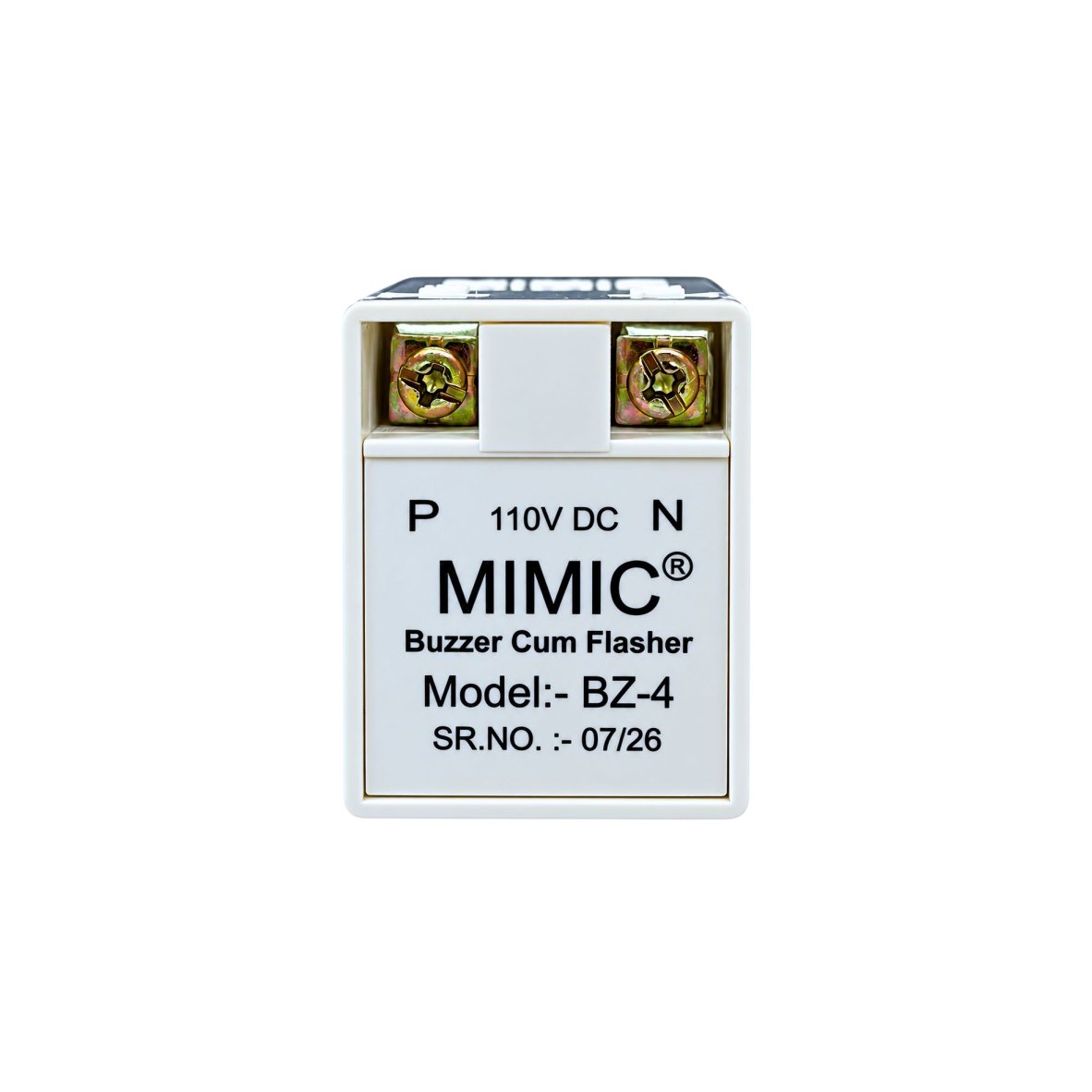

BZ-4 Buzzer Cum Flasher-110V DC - Image 3

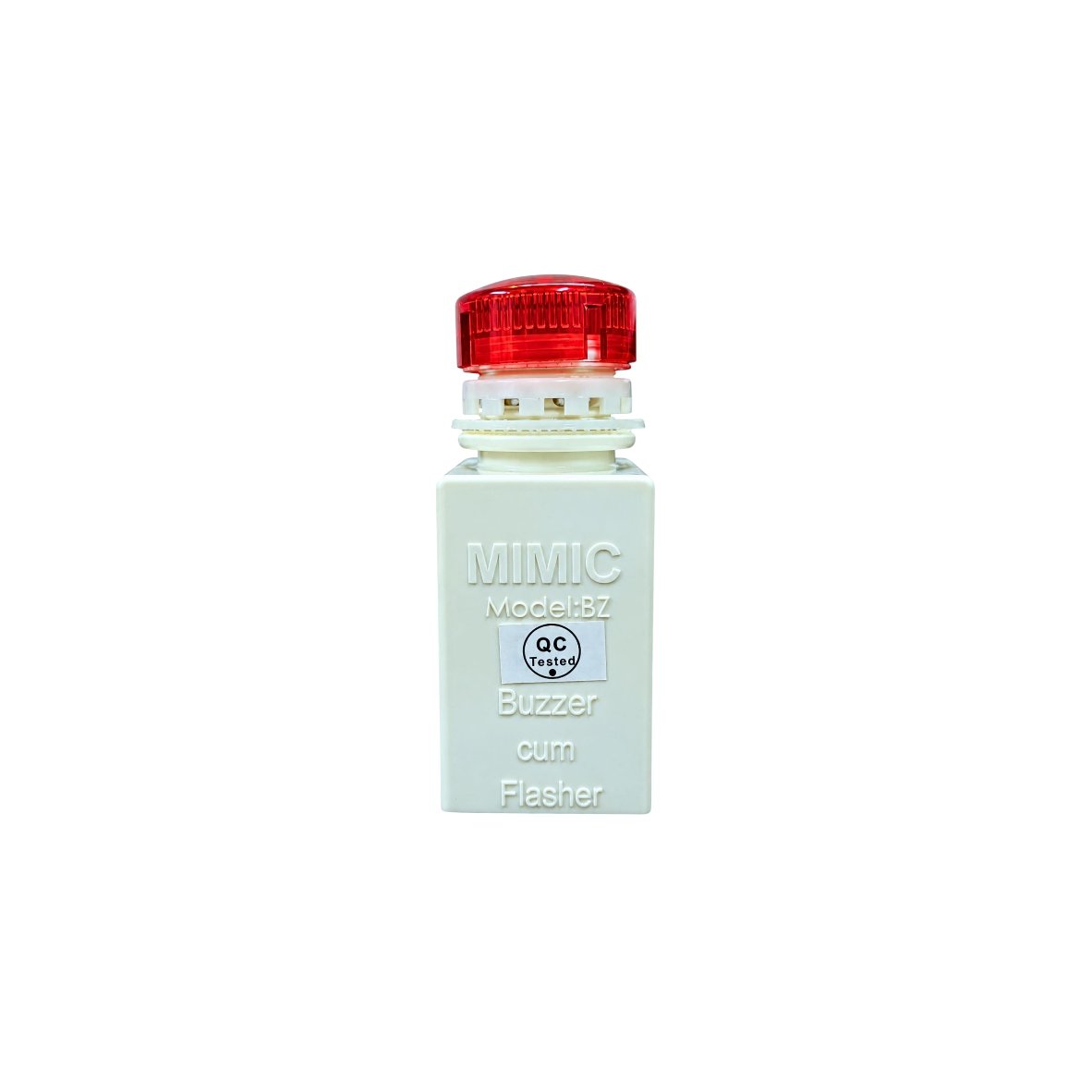

BZ-4 Buzzer Cum Flasher-110V DC - Image 4

BZ-4 Buzzer Cum Flasher-110V DC - Image 5

BZ-4 Buzzer Cum Flasher-110V DC

MIMIC BZ-4 Buzzer Cum Flasher 110V DC

Key Features

Integrated buzzer and flashing LED indicator in one unit, saving panel space.
Loud 90 to 105 dB audible alarm with bright LED flash.
Panel mounting with 22.5 mm standard cutout for easy installation.
Compact 30 × 40 mm housing.
IP54-rated front for dust and water protection.
Low power consumption with reliable solid-state design.
Maintenance-free, long-life LED.

BZ-4 Buzzer Cum Flasher – Technical Specifications

1. Electrical Specifications

Parameter	Specification
Model	BZ-4
Operating Voltage	110V DC
Current	13 mA
Voltage Tolerance	±20%
Power Consumption	< 5 VA / < 50 mA
Operating Mode	Buzzer Beeping & Flashing at a time
Sound Output	90 dB at 1 meter
Tone Type	Intermittent Beeping
Flash Rate	60 flashes/minute (1 flash per second)
LED Colour	Red
Duty Cycle	Continuous Rated
Protection	Reverse Polarity Protected

2. Mechanical Specifications

Parameter	Specification
Enclosure	PBT, Flame Retardant Body UL94V0
Glowing Cap	Polycarbonate
Mounting	Panel Mounting, 22.5 mm Cutout
Overall Size	32 × 42 × 80 mm
Behind Panel	60 mm
Weight – Main Unit	56 gm
Weight – With Carton	64 gm

Packaging Specifications

Parameter	Specification
Carton Size	44 (L) × 34 (W) × 86 cm
Units per Main Carton	35 Units
Main Carton Size	225 (L) × 190 (W) × 125 mm
Main Carton Weight	2 Kg 300 gm with 35 units

3. Connection Details

Connection: +12V, 0V to Pin 1 & 2 respectively

Connection Wires: 1.5 to 2.5 mm² × 2 Nos.

4. Comparison

Old System	MIMIC Buzzer Cum Flasher
Separate Buzzer	Integrated Buzzer
Separate Lamp	Integrated Flashing LED
Separate Flasher Relay	Integrated Flasher
Multiple components	All-in-one unit

5. Warranty

Warranty: 12 Months

6. Applications

Control Panels & Distribution Boards
Industrial Automation & Machinery
Process Control & Monitoring Systems
Alarm & Safety Warning Systems
HVAC & Building Management
Material Handling & Conveyors

7. Ordering Details

Parameter	Details
Ordering Code	BZ-4
Ordering Name	MIMIC Buzzer Cum Flasher, Model: BZ-4, Voltage: 110V DC
Ordering Email ID	mimic.sales@gmail.com
Ordering Phone (WhatsApp)	9321155319
Technical Inquiry	9321252022

Ordering Address

Steam Airetric Controls
Plot No. A/34, Additional Ambernath MIDC,
Anand Nagar, Ambernath (E),
Dist. Thane, Maharashtra, India – 421506

FAQs

What is a BZ-4 Buzzer Cum Flasher?

The BZ-4 Buzzer Cum Flasher 110V DC is an industrial warning device that combines a loud electronic buzzer and a flashing LED indicator in one unit. It provides simultaneous audible and visual alerts for machinery, control panels, automation systems, and safety applications.

What is the difference between the BZ-4 and a conventional alarm system?

A conventional system may require a separate buzzer, separate lamp, and flasher relay. The MIMIC BZ-4 combines these functions into one compact unit, helping save panel space and simplify installation.

What is the sound output of the BZ-4?

The BZ-4 provides a 90 dB audible output at 1 meter, with an intermittent beeping tone.

What is the flash rate of the BZ-4?

The flashing LED operates at 60 flashes per minute, equivalent to approximately one flash per second.

What is the operating voltage of the BZ-4?

The BZ-4 Buzzer Cum Flasher operates at 110V DC with a voltage tolerance of ±20%.
