Name: BZ-3 Buzzer Cum Flasher – 12-24V AC/DC Industrial Alarm
SKU: BZ-3

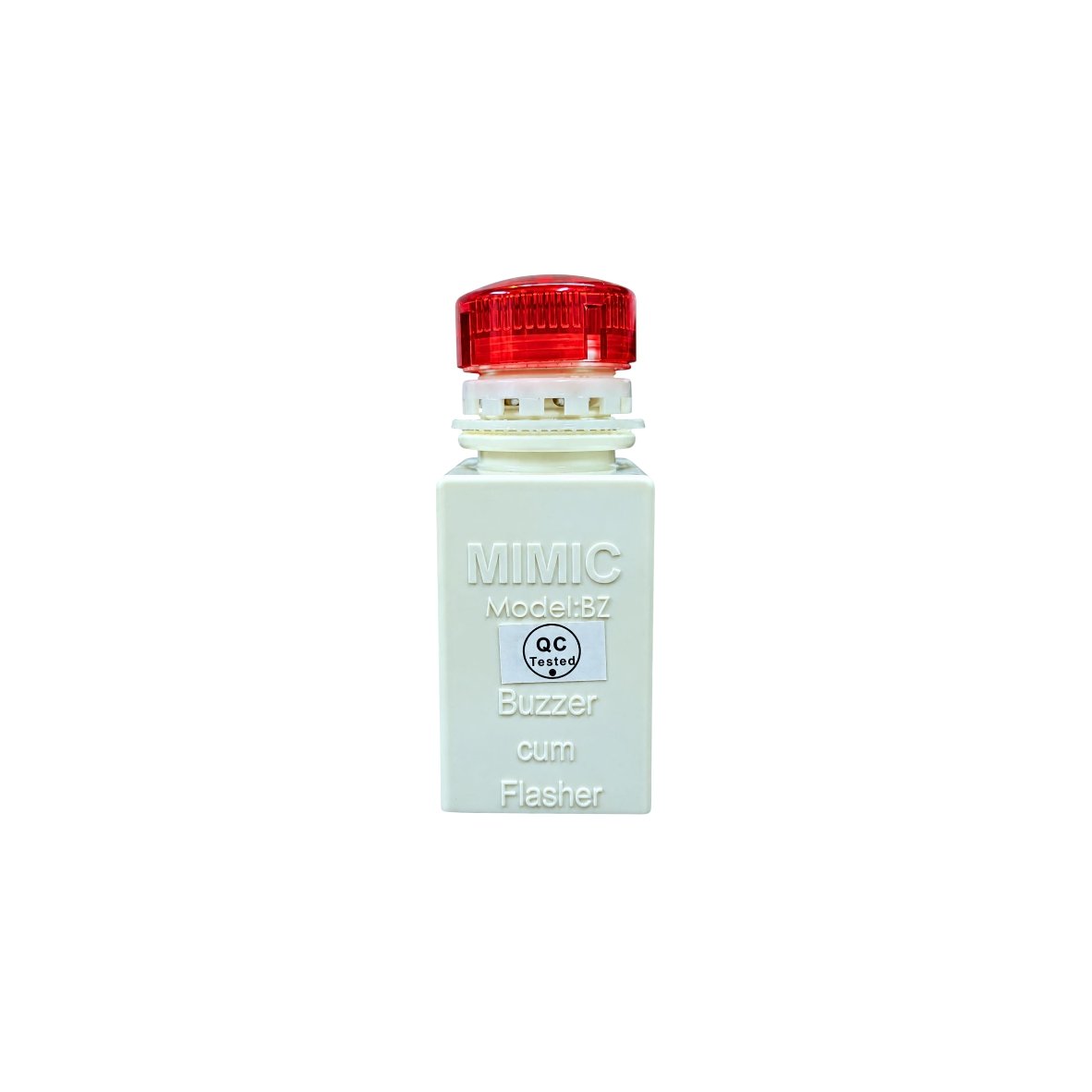

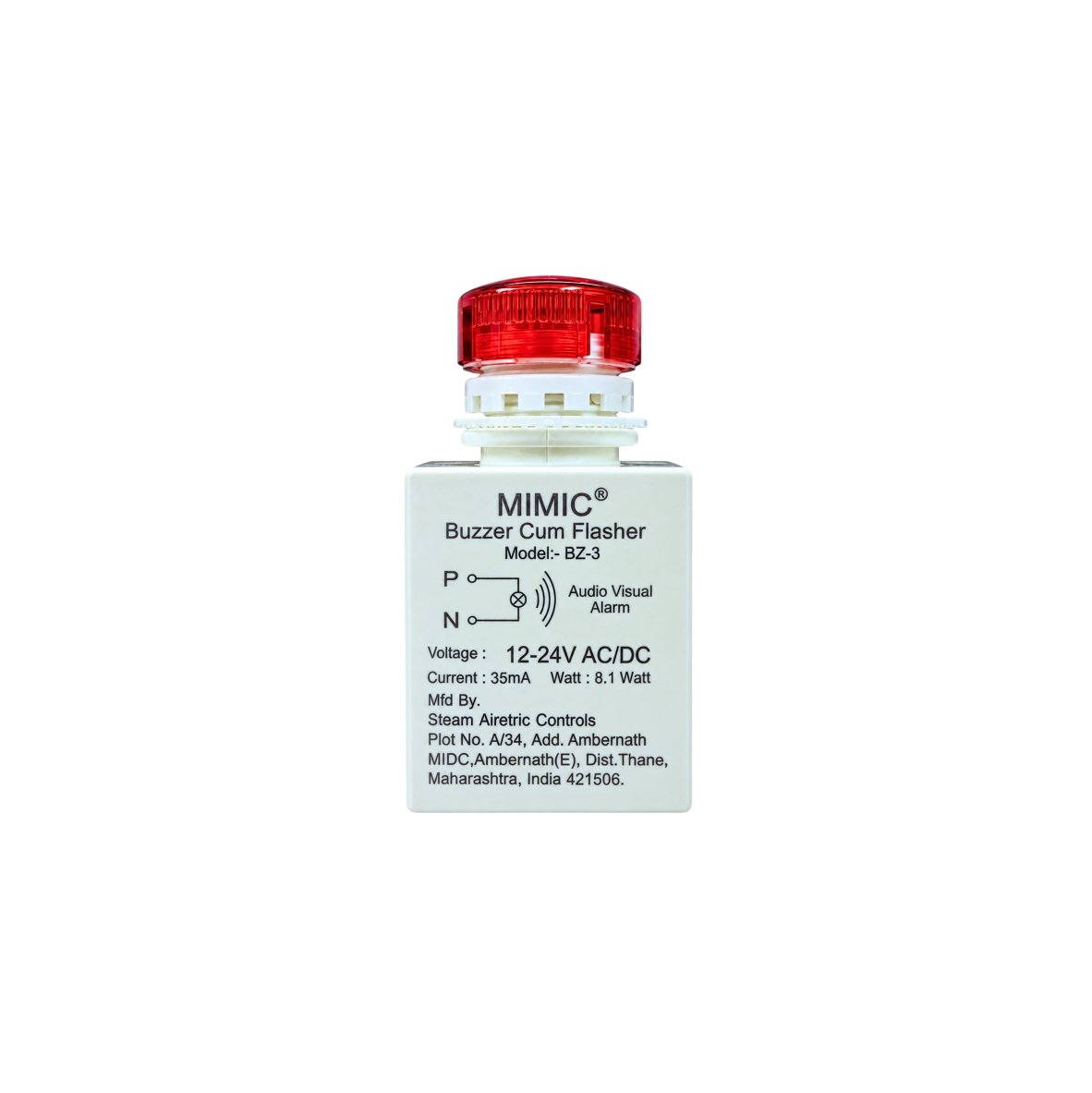

MIMIC Buzzer Cum Flasher: Model: BZ-3

Key Features

Integrated buzzer & flashing LED indicator in one unit; saves panel space.
Loud 90 to 105 dB audible alarm with bright LED flash.
Panel mount 22.5 mm standard cutout for easy installation.
Compact 30 × 40 mm housing.
IP54 rated front for dust & water protection.
Low power consumption, reliable solid-state design.
Maintenance-free, long-life LED.

BZ-3 Buzzer Cum Flasher Technical Specifications

1. Electrical Specifications

Specification	Details
Operating Voltage	12-24V AC/DC
Current	16 mA
Voltage Tolerance	±20%
Power Consumption	< 5 VA / < 50 mA
Operating Mode	Buzzer Beeping & Flashing at a Time
Sound Output	90 dB at 1 Meter
Tone Type	Intermittent Beeping
Flash Rate	60 Flashes / Minute (1 Flash / Second)
LED Colour	Red
Duty Cycle	Continuous Rated
Protection	Reverse Polarity Protected

2. Mechanical Specifications

Specification	Details
Enclosure	PBT, Flame Retardant Body UL94 V-0
Cap	Polycarbonate, Glowing Cap
Mounting	Panel Mounting, 22.5 mm Cutout
Overall Size	32 × 42 × 80 mm
Behind Panel	60 mm
Weight	Main Unit: 56 g, With Carton: 64 g

With Carton

Specification	Details
Carton Size	44 (L) × 34 (W) × 86 cm
No. of Units in One Main Carton	35 Units
Main Carton Size	225 (L) × 190 (W) × 125 mm
Main Carton Weight	2 kg 300 g with 35 Units

Connection

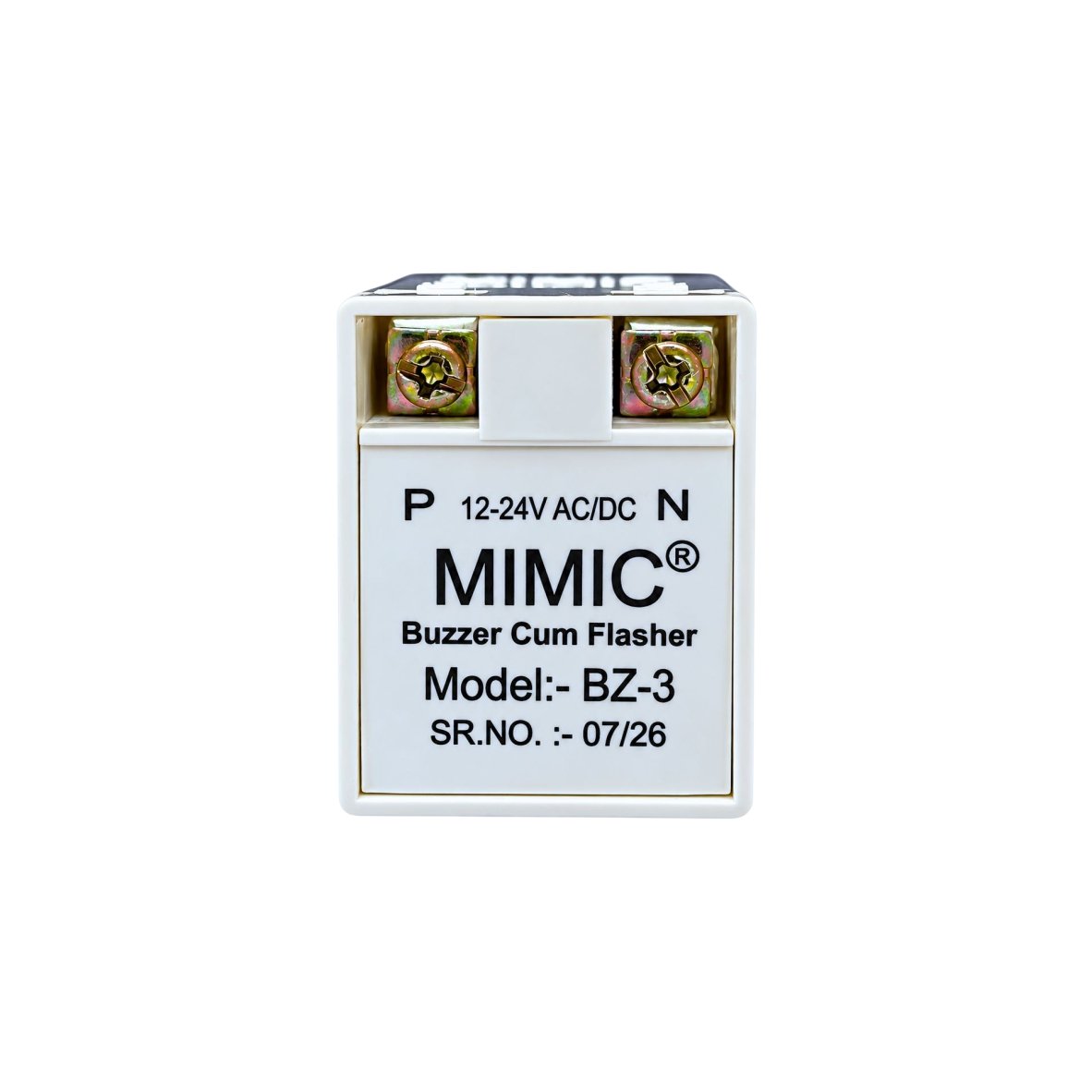

Connection: +12V, 0V to Pin 1 & 2 respectively

Connection Wires: 1.5 to 2.5 mm² × 2 Nos.

Comparison

Old System: Separate Buzzer + Separate Lamp + Flasher Relay
MIMIC Buzzer Cum Flasher: All in One

Warranty

12 Months

Applications

Control Panel & Distribution Boards
Industrial Automation and Machinery
Process Control and Monitoring Systems
Alarm and Safety Warning Systems
HVAC & Building Management
Material Handling & Conveyors

Ordering Details

Ordering Code: BZ-3

Ordering Name: Mimic Buzzer Cum Flasher, Model: BZ-3, Voltage: 12-24V AC/DC

Ordering Email ID: mimic.sales@gmail.com

Ordering Phone (WhatsApp): 9321155319

Technical Inquiry: 9321252022

Ordering Address: Steam Airetric Controls, Plot No. A/34, Additional Ambernath MIDC, Anand Nagar, Ambernath (E), Dist. Thane, Ambernath, Maharashtra, India, 421506
