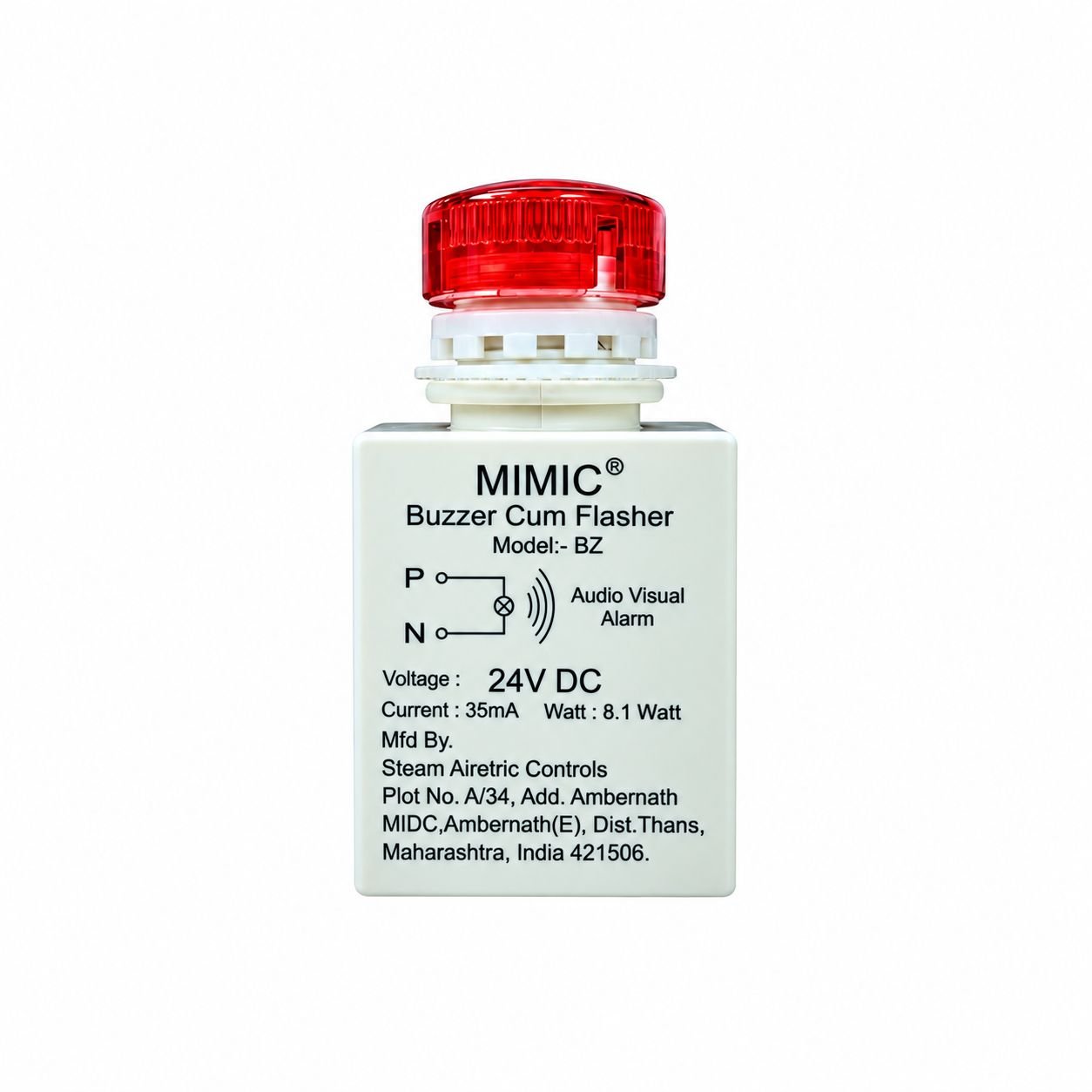

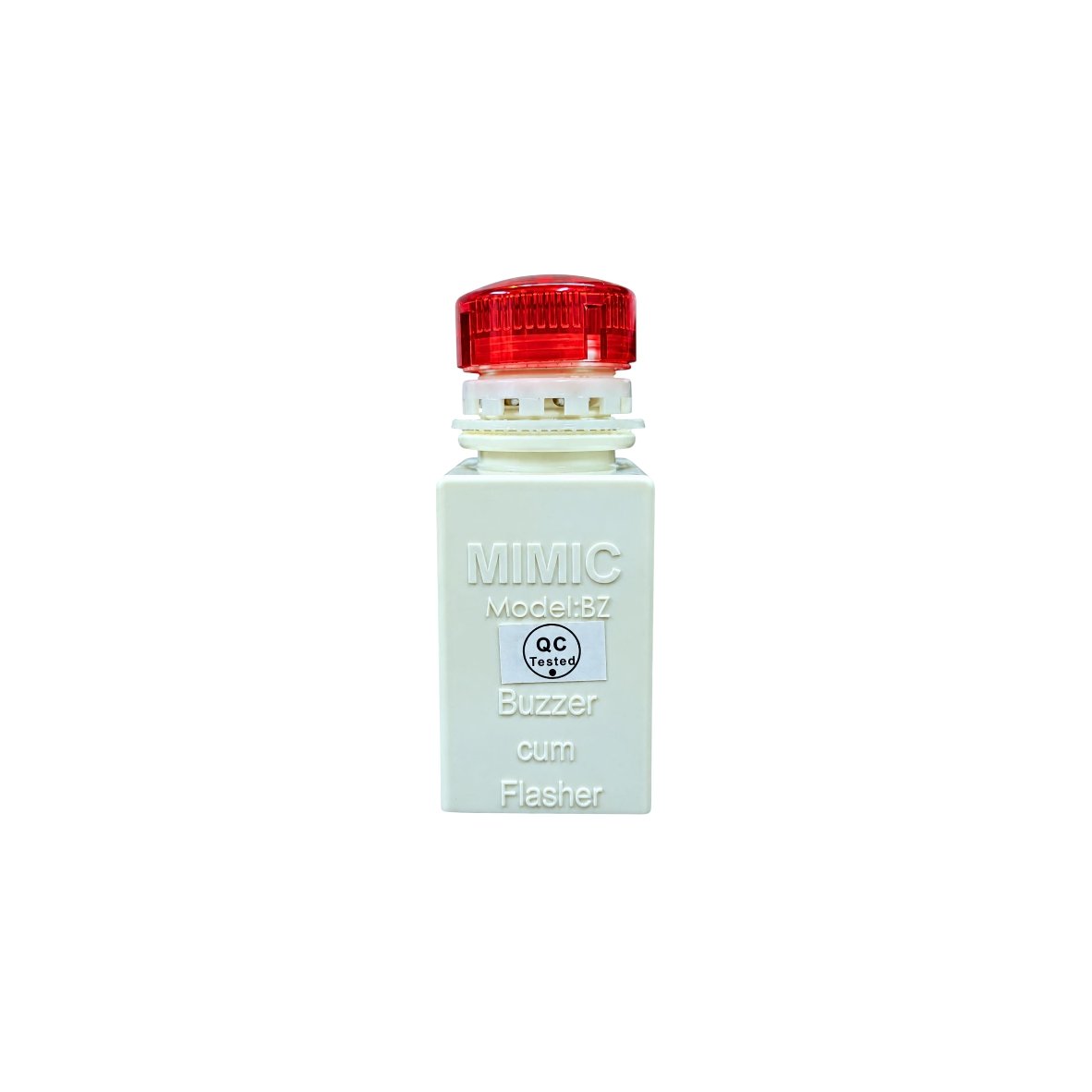

BZ1-BZ6 Buzzer Cum Flasher : Group

  The BZ1-BZ6 Buzzer Cum Flasher is a compact panel-mounted audio-visual alarm and indicator designed for low-voltage control panels, electrical switchgear, automation systems, distribution boards, control desks and mimic panels.

  It combines a high-output audible buzzer with a high-luminance flashing LED to provide clear fault, trip and warning indication through both sound and visual signals.

  Designed for a 22.5 mm panel cutout, the unit has a compact construction and is available in multiple operating voltage configurations, including 12-24V AC/DC, 24V DC, 110V AC, 11oV DC and 230V AC.

  It provides a sound level of ≥95 dB at 1 meter and a flashing rate of 60–120 flashes per minute, making it suitable for industrial control and automation signaling applications.

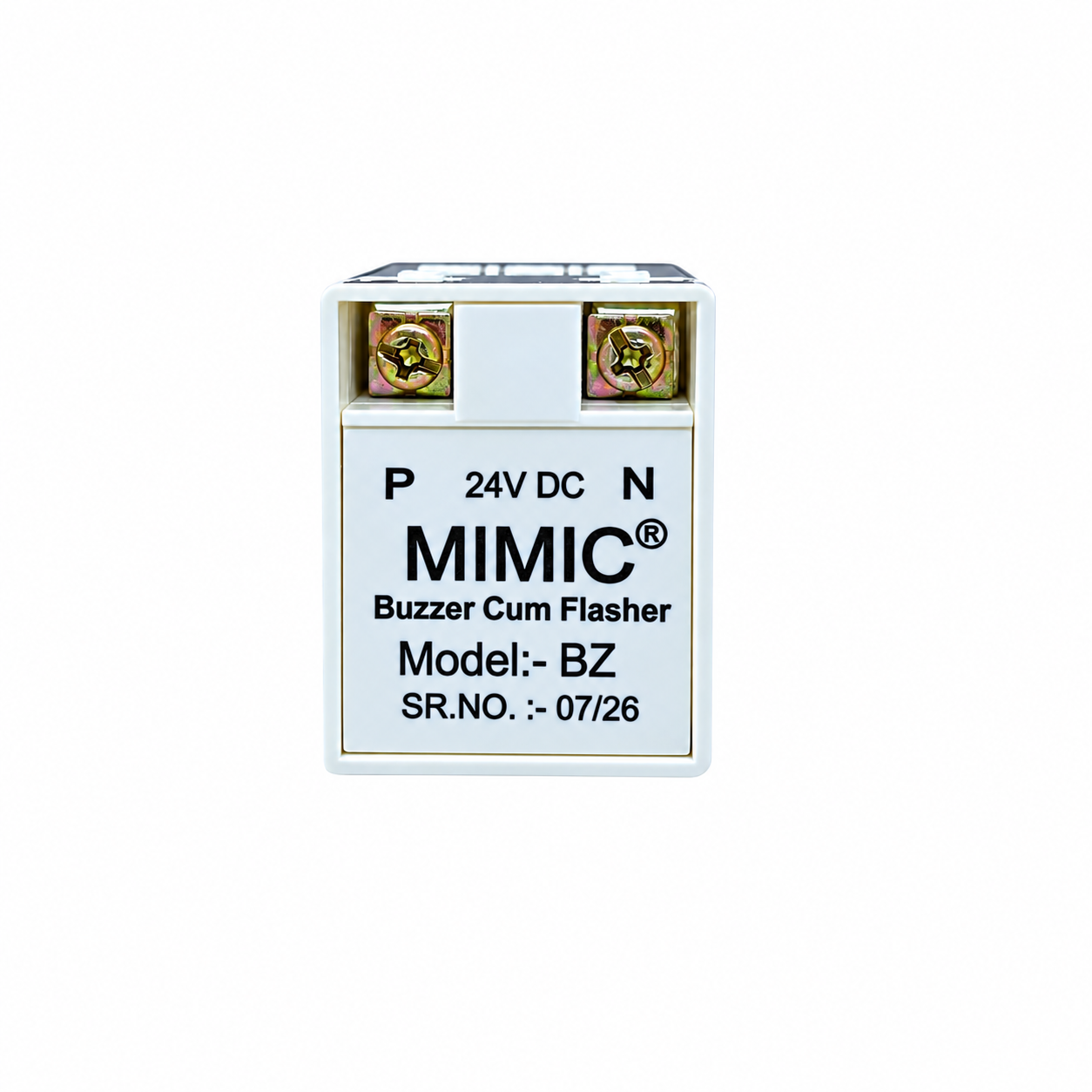

Key Features: 22.5 mm panel mounting | ≥95 dB audible output | High-luminance LED | 60–120 flashes/min | Multiple AC/DC voltage options | IP54 front protection with gasket | IP20 rear terminals.

Key Applications Worldwide

1. Electrical Control and Automation Panels: Used extensively on machinery and factory floor panels to instantly notify operators of a system trip, overload, or machine error.
2. Process and Heavy Industries: Deployed in cement plants, power generation facilities, chemical plants, and oil refineries where high ambient noise requires both a piercing sound (90–105 dB) and a visual blink.
3. Infrastructure and Transport: Integrated into railways, defense systems, marine vessels, and aviation ground equipment for safety alerts and status tracking.
4. Commercial and Public Safety: Found in automated car parking elevators, fire alarm systems, and restricted security entry points as an emergency warning indicator.

Product Overview

The BZ1-BZ6 Buzzer Cum Flasher is an integrated acoustic and optical signaling device designed for real-time fault annunciation in low-voltage switchgear, control panels and automation desks. It combines an audible buzzer and a flashing LED indication in a compact panel-mount design, providing dual-mode signaling for applications requiring both sound and visual indication.

The device is designed for a 22.5 mm panel cutout and is suitable for installation in electrical control panels, distribution boards, control desks and mimic panels. The specified voltage options, acoustic output, LED flash characteristics and environmental parameters are listed below.

BZ1-BZ6 Buzzer Cum Flasher

Technical Datasheet | LED Industrial Audio-Visual Alarm & Indicator

Mechanical Dimensions

Electrical Specifications

Acoustic & Optical Performance

Environmental & Construction Specifications

Key Product Characteristics

• Integrated audible and flashing LED indication in one panel-mounted device
• 22.5 mm panel cutout with compact front and rear dimensions
• Multiple specified AC/DC operating voltage configurations
• Sound output of ≥95 dB at 1 meter
• High-luminance cluster LED array
• Specified front IP54 protection when mounted with gasket and IP20 rear terminal protection
• Operating temperature range of -20°C to +60°C
• UL94-V0 fire-retardant PBT housing

Typical Application Areas

• Low-voltage switchgear and control panels
• Electrical control panels
• Automation desks and automation panels
• Distribution boards
• Control desks
• Mimic panels
• Fault and trip indication applications
• Machinery warning and alarm indication
• Standards & Compliance

HOW TO ORDER – READY STOCK

MIMIC BUZZER CUM FLASHER : BZ SERIES MODELS — ORDERING CODE

HOW TO ORDER

• Specify the ordering code as per the format above (e.g.,BZ-1 on mail or phone or whatsapp).
• Contact our sales team for availability, technical support, or bulk pricing.
• For custom requirements, please contact us with your application details.

www.mimicproducts.in  |   Made in India   |   12 Months Warranty

Other Related MIMIC Products in 22.5mm Cutout Used in Control Panel

• MIMIC – Continuous Buzzer – Model CBZ :This gives continuous nonstop buzzer sound.
• MIMIC – Buzzer Cum Flasher in Box – Model CBZX : Fitted in IP65 box with canopy arrangement for external application.
• MIMIC Buzzer – Model MB : Without flashing indication.
• MIMIC –  Buzzer Plus Flasher –  Model MBF : With two separate circuits for buzzer and flasher give facility to externally cancel or accept the audio.
• MIMIC – Buzzer Cum Flasher with Audio Accept – Model MBFAA : Accepts or cancels audio with inbuilt push button.
• MIMIC Hooter – Model MH : Low frequency traditional hooter sound.
• MIMIC Hooter Cum Flasher with Audio Accept Model – MBFAA : Low frequency hooter cum flasher with sound accept, flashing ‘ON’
