Semaphore Indicator 43 mm Cutout

Semaphore Indicators LED based are manufactured & exported by MIMIC, Mumbai.

Introduction: –

·         Semaphore Indicators are used in high tension (H.T.) control panels applications and are used in situations that require visual simulation of the circuit or operating state of advice & indication of the fault position in addition to the “ON” & “OFF” positions.

·         Semaphore indicators are crucial for monitoring & controlling electrical systems.

·         Semaphore indicators are particularly suitable for monitoring power breakers & disconnectors in complex transformers substations which are represented in form of mimic diagrams of relatively small dimensions

·         Semaphore Indicators are also suitable for automatic status indication of isolators, earth switches, circuit breakers & PT ON / OFF etc. on “MIMIC” diagrams

·         LED based semaphore indicators are energy efficient & durable, these indicators come in different colours, such as Red & Green

Semaphore Indicator 43mm Cutout

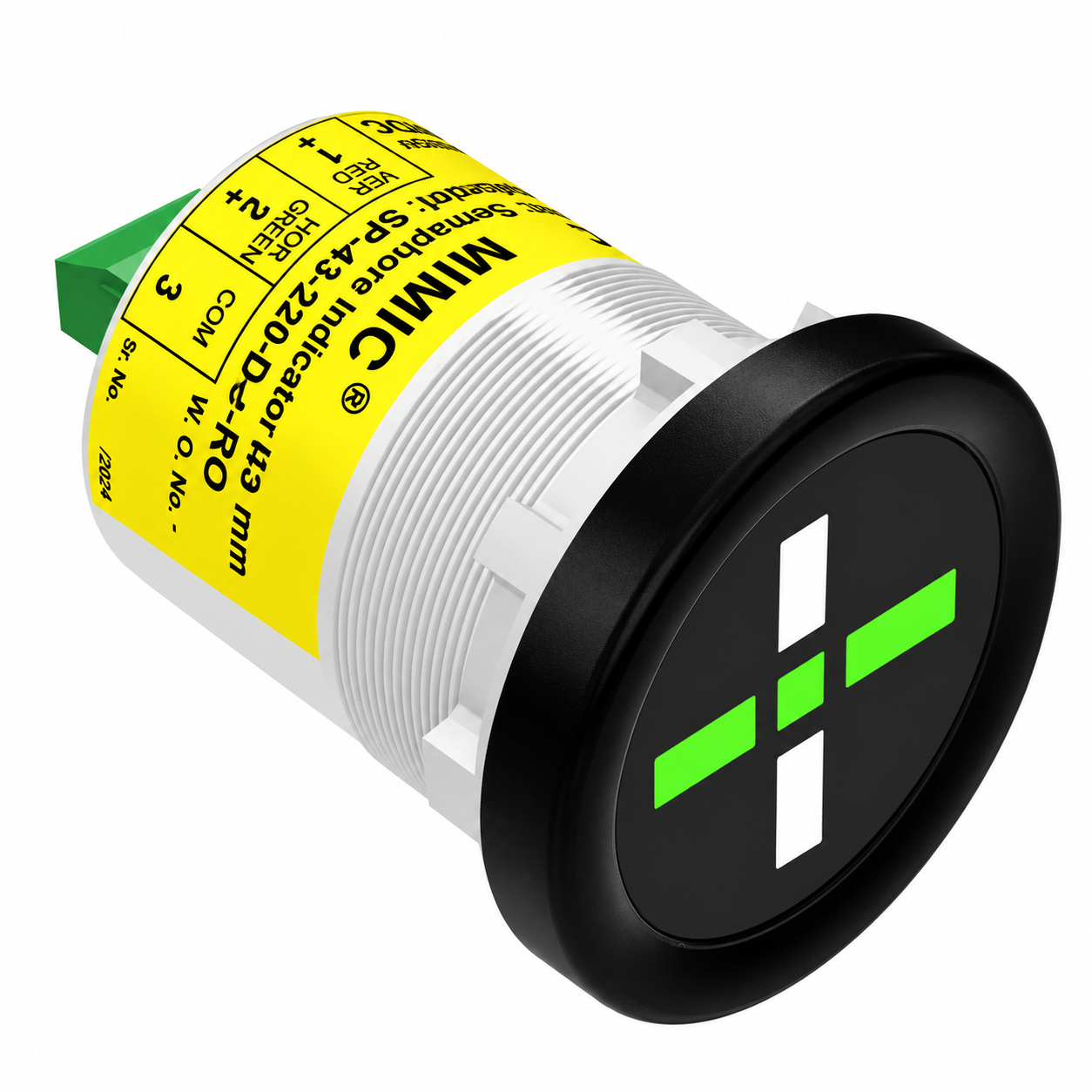

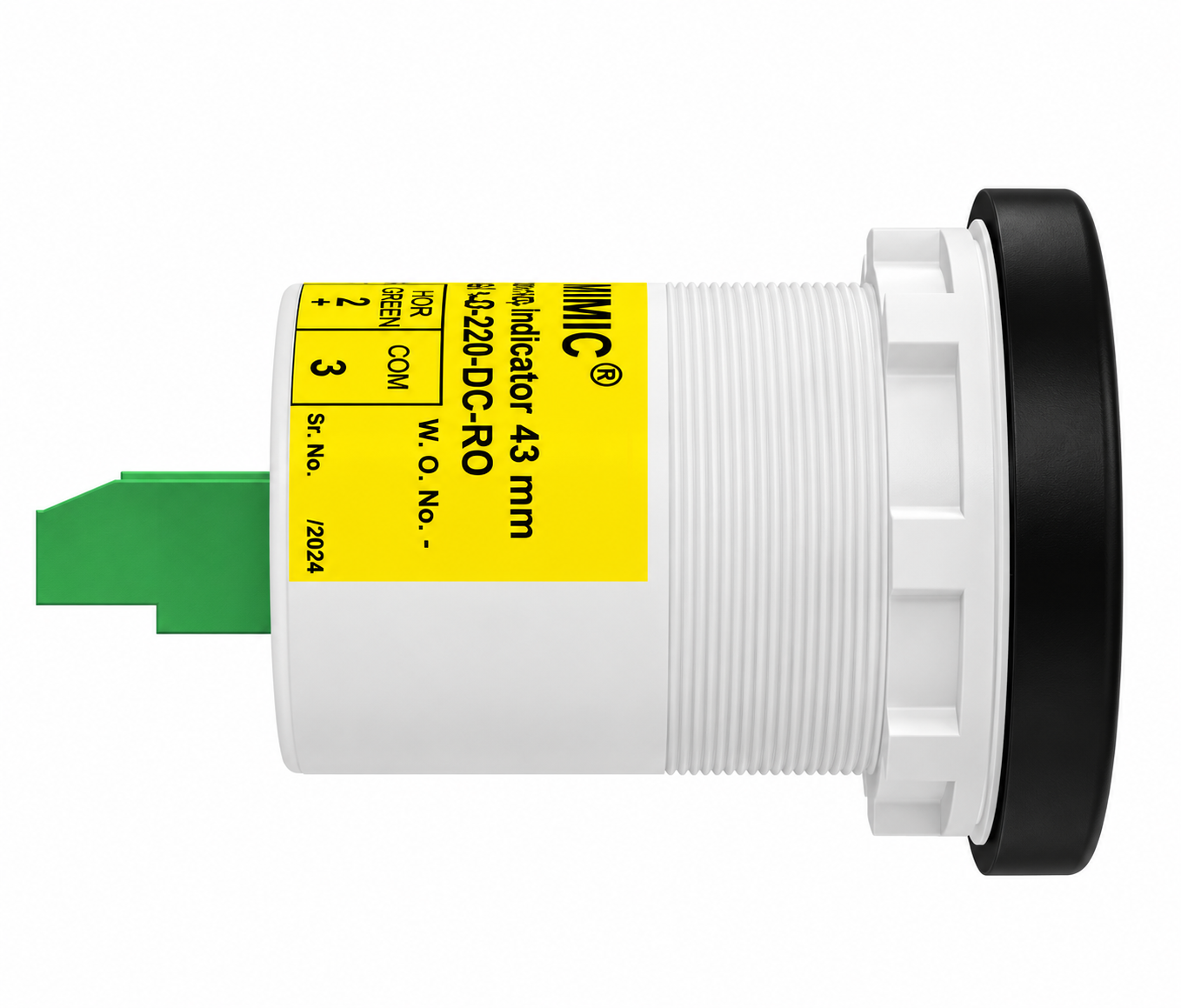

Details:- MIMIC semaphore indicator cutout-43mm
Bezel- 54 mm round
Voltage- DC 24V, 48V, 110V, 125V, 220V, 250VDC

Applications :- Circuit Breaker Panel MIMIC Diagram

Specifications :-
Rated Insulation Voltage (Ui) : AC, DC 250V.
Rated Operational Voltage (Ui) : DC 24V, 48V, 110V, 125V, 220V, 250VDC
Voltage Fluctuation Range : ±15%
Rated Operational Current (Ie) : 11 mAmax
Insulation Resistance : 1000MΩ over Impulse Withstand
Voltage : ± 4500V,
3 Times For EachPole (1.2/50µs) Shock Resistance : 490m/s²
Durability : over 10000 Cycles
Degree Of Protection : IP52
Operating Temperature : -20 to 60° C
Storage Temperature : -30 to 75° C
Relative Humidity : 45 to 85 %
Altitude : Max 2000m
Compatiable Copper Conductor : AWG 20 to 14
Mounting Plate Thickness : 1 to 6mm
Confirming to Standard : IEC 60947-5-1, IEC 60947-1

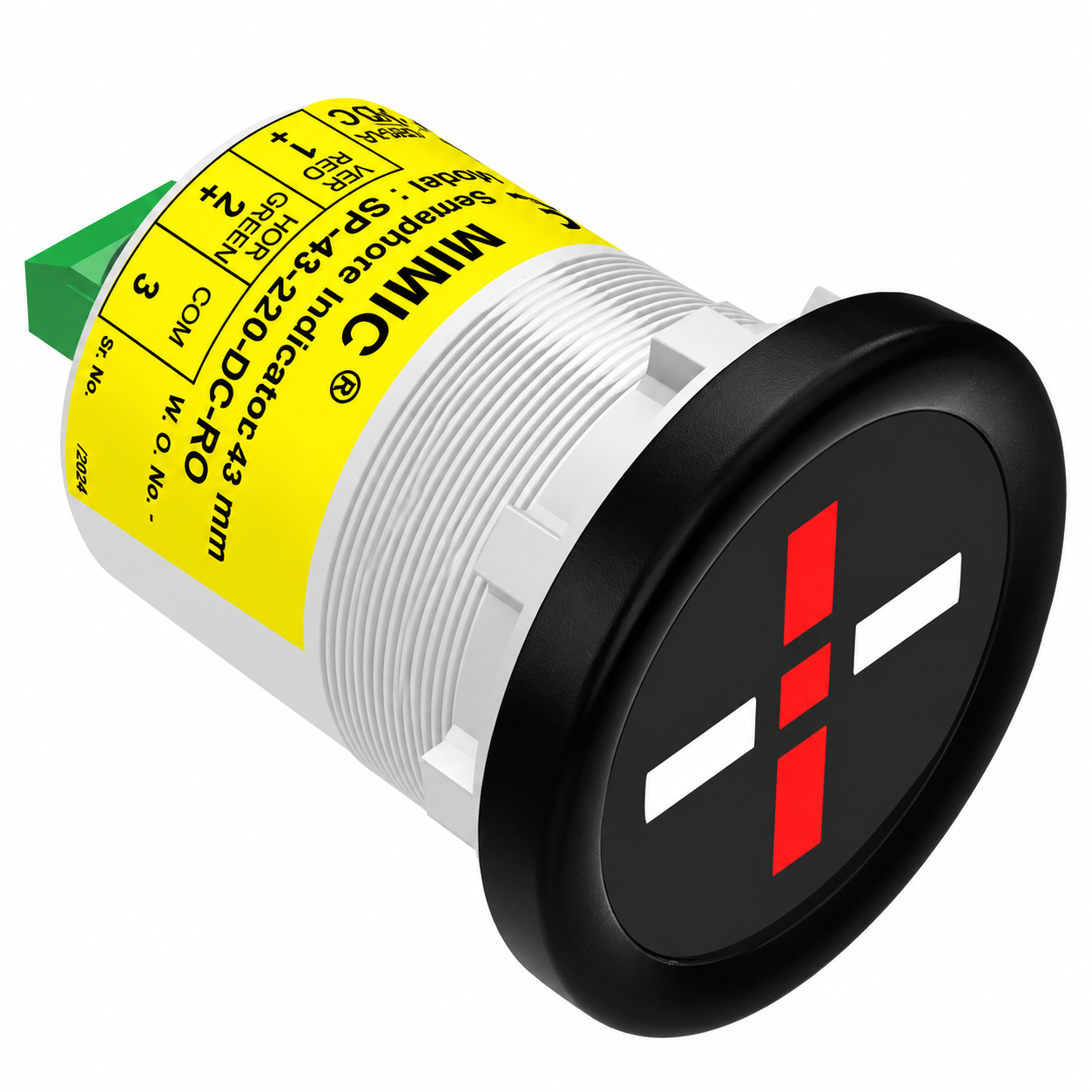

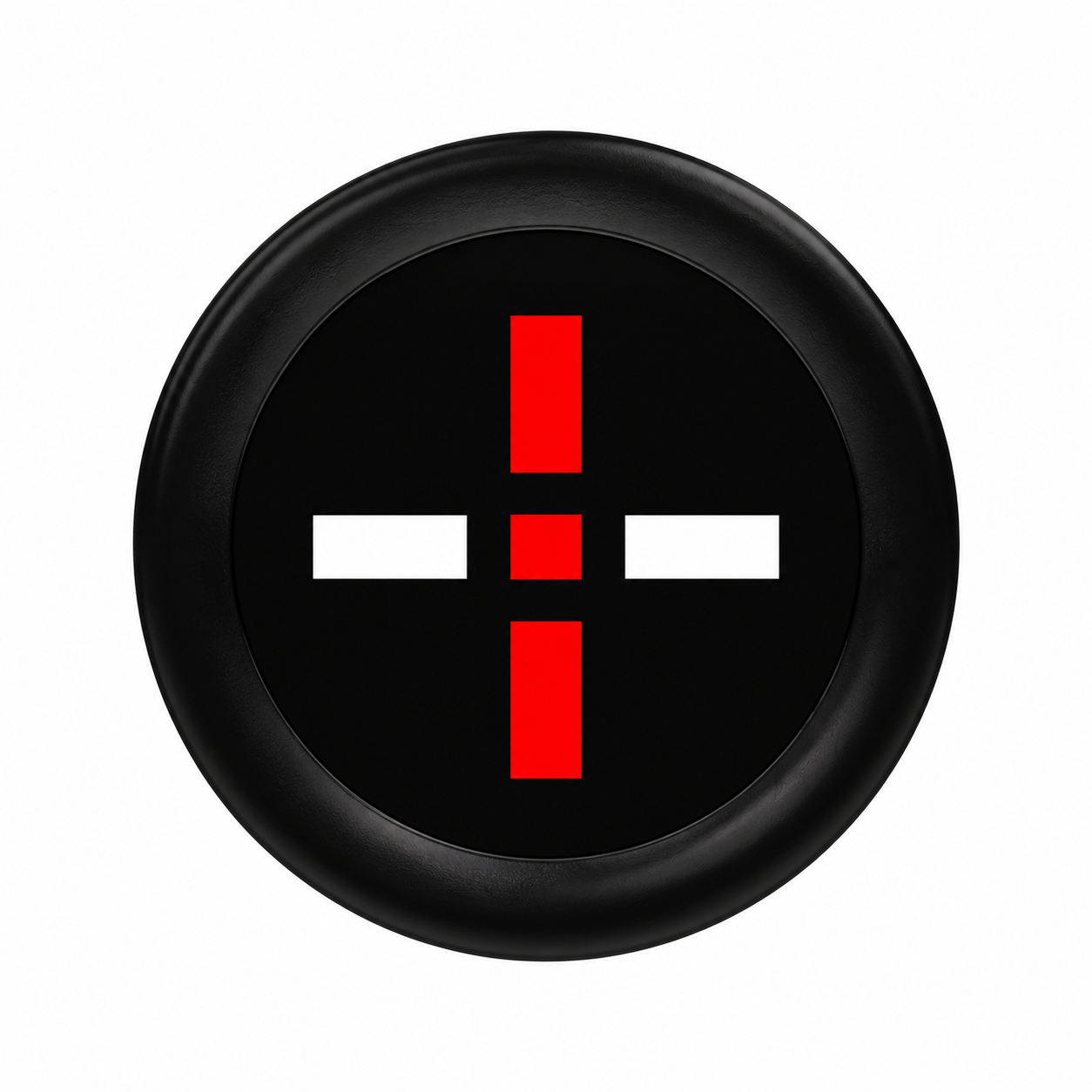

Indication: vertical red , horizontal green

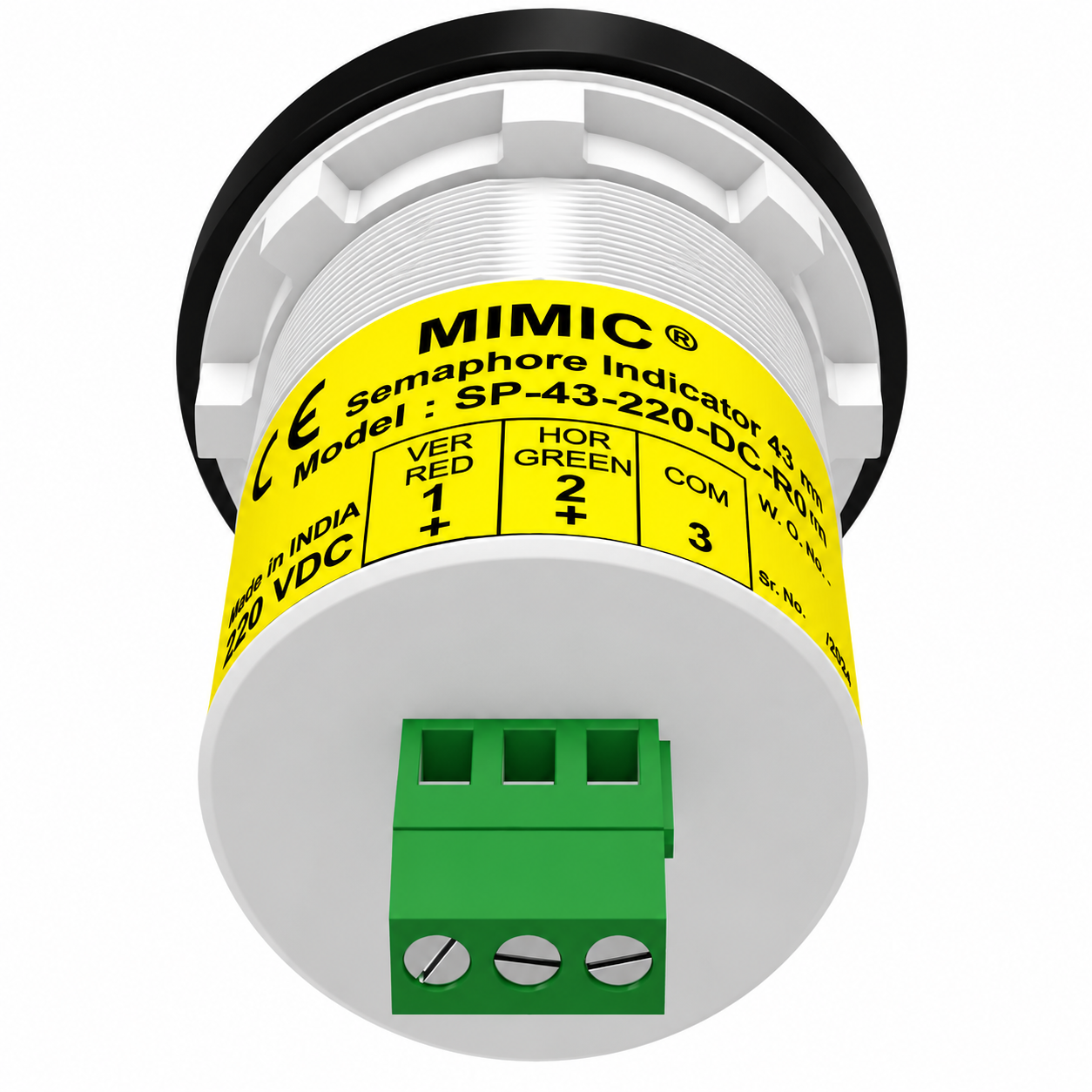

Connection: 1-red,2-green,3-common

Types –

• MIMIC LED Semaphore Indicator 43 Cutout Voltage 24 VDC – Round, SKU:MIMIC-SP-43-24-DC-RO
• MIMIC LED Semaphore Indicator 43 Cutout Voltage 48 VDC – Round, SKU:MIMIC-SP-43-48-DC-RO
• MIMIC LED Semaphore Indicator 43 Cutout Voltage 110 VDC – Round, SKU:MIMIC-SP-43-110-DC-RO
• MIMIC LED Semaphore Indicator 43 Cutout Voltage 125 VDC – Round, SKU:MIMIC-SP-43-125-DC-RO
• MIMIC LED Semaphore Indicator 43 Cutout Voltage 220 VDC – Round, SKU:MIMIC-SP-43-220-DC-RO
• MIMIC LED Semaphore Indicator 43 Cutout Voltage 250 VDC – Round, SKU:MIMIC-SP-43-250-DC-RO

Related Industrial Signaling Products

Looking for more industrial signaling solutions? Explore our complete range of LED Semaphore Indicators, Tower Lamps, Beacon Lamps, Industrial Hooters, Buzzers, and Annunciation Windows for industrial automation, electrical control panels, and machine safety applications.
